Q-0405H0003006i

Active

Amphenol Custom Cable

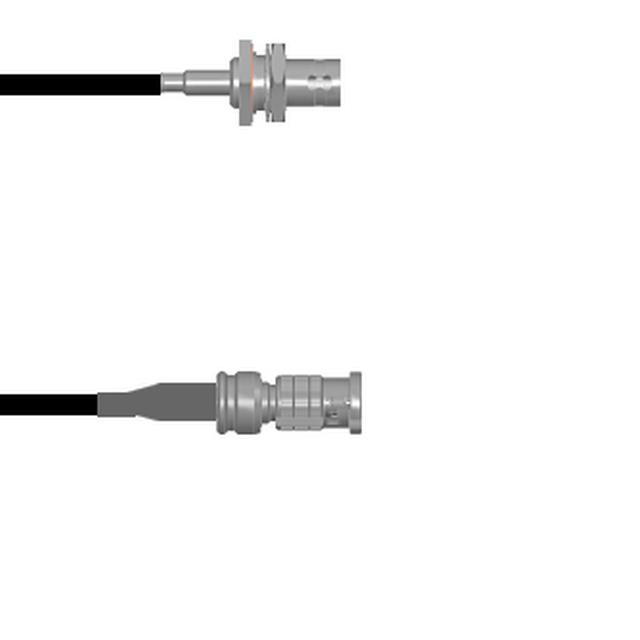

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0405H0003006i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0405H0003006i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	BNC to HD-BNC

Q-0405H0 Series

Part	Length	Length	Color	Overall Impedance	1st Connector Mounting Type	2nd Connector Mounting Type	Style	2nd Contact Gender	1st Contact Gender	Features	Frequency - Max [Max]	Cable Type	1st Connector Mounting Feature	2nd Connector	1st Connector	Length
Amphenol Custom Cable Q-0405H0005012i	12 "	304.8 mm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H00050.5M	19.69 "	50 cm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H0005108i	108 in	2.7 m	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack	9 ft
Amphenol Custom Cable Q-0405H0005009i	9 "	228.6 mm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H0005048i	48 in	1200 mm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack	4 ft
Amphenol Custom Cable Q-0405H0005006i	6 in	152.4 mm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H0003072i	72 in	1.8 m	Black	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-174	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack	6 ft
Amphenol Custom Cable Q-0405H0003006i	6 in	152.4 mm	Black	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-174	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H0005036i	36 in	91.44 cm	Copper	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-316	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack
Amphenol Custom Cable Q-0405H0003002M	78.7 in	2 m	Black	50 Ohms	Panel Mount	Free Hanging (In-Line)	BNC to HD-BNC	Male	Female	Shielded	4 GHz	RG-174	Bulkhead - Front Side Nut	HD-BNC Plug	BNC Jack	6.6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 70.65
		25	$ 69.28
		50	$ 67.91
		100	$ 66.54
		250	$ 65.18

Description

General part information

Q-0405H0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-174 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
