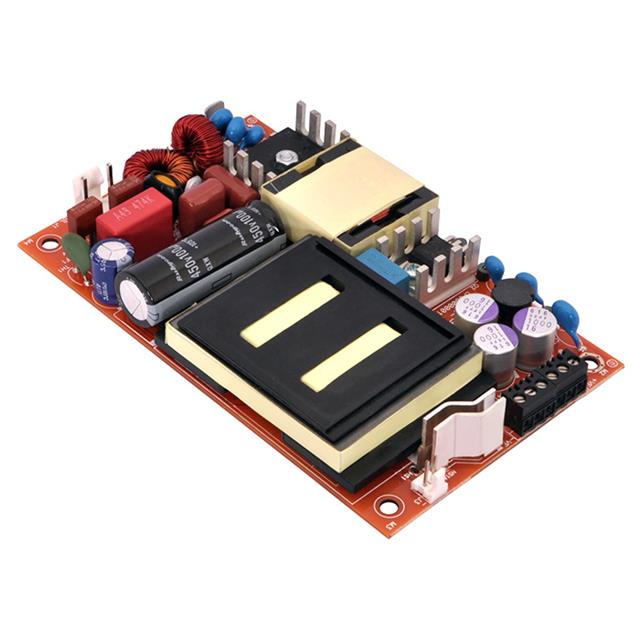

ULP275-1312

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

Search across all available documentation for this part.

ULP275-1312

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 160W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ULP275-1312

Applications	ITE (Commercial)
Approval Agency	cUL, CE, UL, CB, NEMKO
Current - Output 1	13.33 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, PFC, Standby Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	160 W
Power (Watts) [Max]	275 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.1 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

ULP275 Series

Part	Approval Agency	Type	Voltage - Isolation	Efficiency	Current - Output 1	Number of Outputs	Power (Watts) [Max]	Power (Watts)	Mounting Type	Features	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1
EOS Power India Private Ltd ULP275-1358	CB CE cUL NEMKO UL	Open Frame	3000 V	92 %	2.76 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "
EOS Power India Private Ltd ULP275-0058	CB CE cUL NEMKO UL	Open Frame	3000 V	92 %	2.76 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	88.9 mm	5 in	127 mm	0.75 in	19.1 mm	3.5 in
EOS Power India Private Ltd ULP275-0015	CB CE cUL NEMKO UL	Open Frame	3000 V	88 %	10.66 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	88.9 mm	5 in	127 mm	0.75 in	19.1 mm	3.5 in	15 V
EOS Power India Private Ltd ULP275-0048	CB CE cUL NEMKO UL	Open Frame	3000 V	92 %	3.33 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	88.9 mm	5 in	127 mm	0.75 in	19.1 mm	3.5 in	48 V
EOS Power India Private Ltd ULP275-1312	CB CE cUL NEMKO UL	Open Frame	3000 V	88 %	13.33 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	12 V
EOS Power India Private Ltd ULP275-0330	CB CE cUL NEMKO UL	Open Frame	3000 V	90 %	5.33 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	88.9 mm	5 in	127 mm	0.75 in	19.1 mm	3.5 in	30 V
EOS Power India Private Ltd ULP275-1324	CB CE cUL NEMKO UL	Open Frame	3000 V	90 %	6.67 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	24 V
EOS Power India Private Ltd ULP275-0012	CB CE cUL NEMKO UL	Open Frame	3000 V	88 %	13.33 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	88.9 mm	5 in	127 mm	0.75 in	19.1 mm	3.5 in	12 V
EOS Power India Private Ltd ULP275-1348	CB CE cUL NEMKO UL	Open Frame	3000 V	92 %	3.33 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	48 V
EOS Power India Private Ltd ULP275-1015	CB CE cUL NEMKO UL	Open Frame	3000 V	88 %	10.66 A	1	275 W	160 W	Chassis Mount	Adjustable Output PFC Standby Output Universal Input	ITE (Commercial)	76.2 mm	5 in	127 mm	0.75 in	19.1 mm	3 "	15 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 65.49

Description

General part information

ULP275 Series

Open Frame AC DC Converters 1 Output 12V 80 ~ 264 VAC, 390VDC Input

Documents

Technical documentation and resources

No documents available
