09465004401

Active

HARTING Technology Group

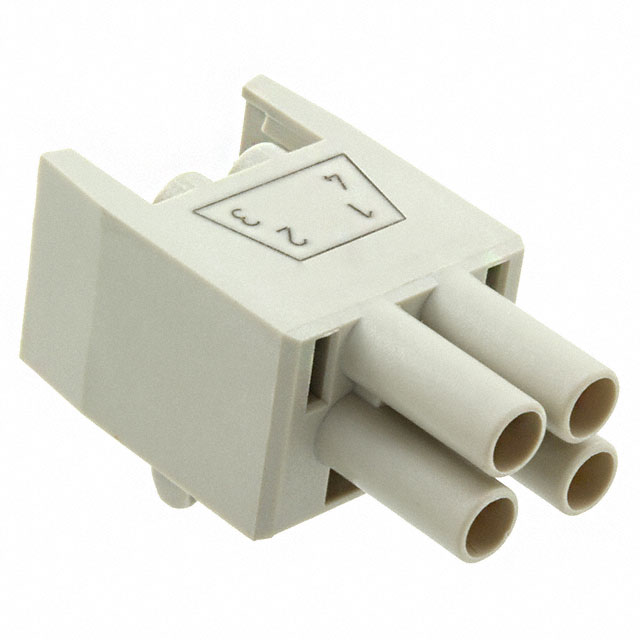

HARTING PUSHPULL V4 POWER 4/0 INSERT, FEMALE, CRIMP

Search across all available documentation for this part.

Active

HARTING Technology Group

HARTING PUSHPULL V4 POWER 4/0 INSERT, FEMALE, CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Type	Features	Insulation Material	Mounting Type	Connector Type	Fastening Type	Contact Termination	Note	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Number of Positions
HARTING Technology Group 09465003401	Male Pin	Strain Relief	Thermoplastic	Free Hanging (In-Line)	Insert Male Pins	Push-Pull	Crimp	Contacts Not Included	-40 °C	70 °C	2
HARTING Technology Group 09465004401	Male Pin		Thermoplastic	Free Hanging (In-Line)	Insert Male Pins	Push-Pull	Crimp	Contacts Not Included	-40 °C	70 °C	2	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Insert, Male Pins
