01059-046

Active

Sensata-BEI Sensors

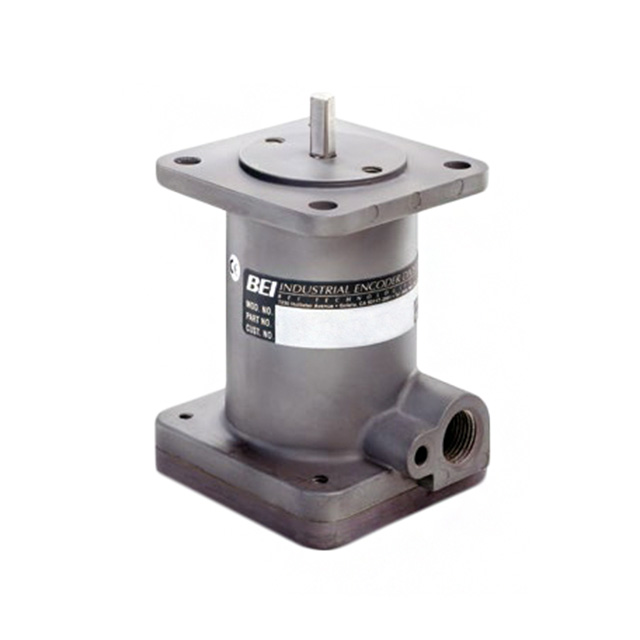

ROTARY ENCODER OPTICAL 2400PPR

Search across all available documentation for this part.

Active

Sensata-BEI Sensors

ROTARY ENCODER OPTICAL 2400PPR

Technical Specifications

Parameters and characteristics for this part

Specification	01059-046

Actuator Type	Shaft
Built in Switch	False
Detent	False
Encoder Type	Optical
Mounting Type	Chassis Mount
Orientation	User Selectable
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	2400
Rotational Life (Cycles Min)	200M
Termination Style	Terminal Block, Straight - Push In
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	5 V

Part	Rotational Life (Cycles Min)	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Encoder Type	Pulses per Revolution	Mounting Type	Built in Switch	Detent	Actuator Type	Orientation	Termination Style
Sensata-BEI Sensors 01059-046	200M	5 V	28 V	Quadrature with Index (Incremental)	Optical	2400	Chassis Mount			Shaft	User Selectable	Terminal Block Straight - Push In
Sensata-BEI Sensors 01059-008		5 V	28 V	Quadrature with Index (Incremental)	Optical	1024	Chassis Mount			Shaft	User Selectable	Terminal Block Straight - Push In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1761.30

General part information

ROTARY ENCODER OPTICAL 2400PPR

Technical documentation and resources

No documents available
