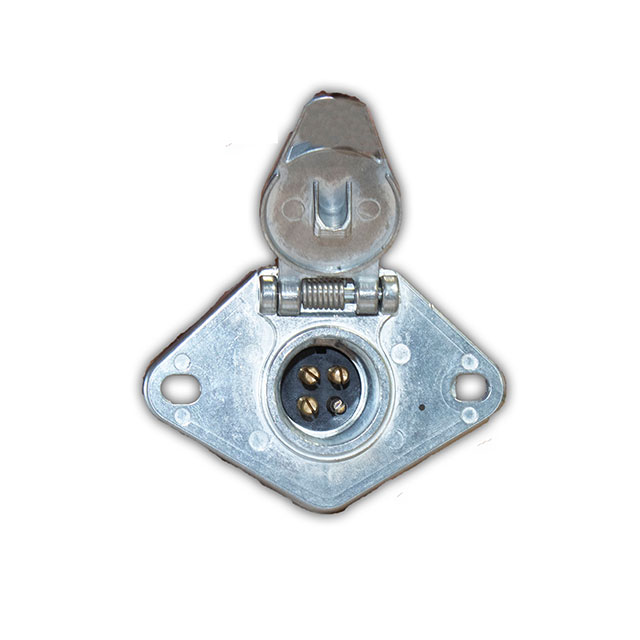

TC4-SC1-Z
ActiveSwitch Components
CONN RCPT MALE 4POS SET SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TC4-SC1-Z
ActiveSwitch Components
CONN RCPT MALE 4POS SET SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TC4-SC1-Z |
|---|---|
| Applications | Automotive |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Material | Brass |
| Fastening Type | Push-Pull |
| Features | Cap (Cover) |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Material | Zinc |
| Shielding | Unshielded |
| Termination | Set Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.57 | |
| 10 | $ 7.88 | |||
| 25 | $ 7.20 | |||
| 50 | $ 6.30 | |||
| 100 | $ 5.83 | |||
| 250 | $ 5.37 | |||
| 500 | $ 4.92 | |||
| 1000 | $ 4.53 | |||
Description
General part information
TC4-S Series
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Set Screw
