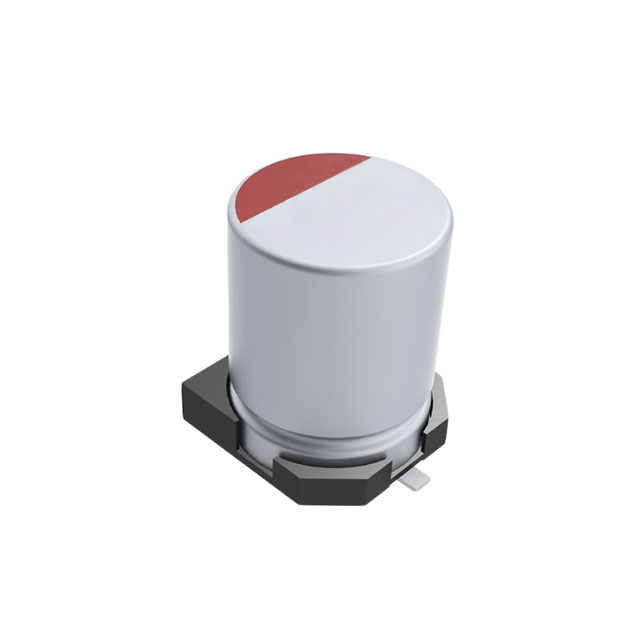

A765BC107M0JLAE025

Active

KEMET

CAP ALUM POLY 100UF 20% 6.3V SMD

Search across all available documentation for this part.

Active

KEMET

CAP ALUM POLY 100UF 20% 6.3V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	A765BC107M0JLAE025

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	25 mOhm
Height - Seated (Max) [Max]	6.3 mm
Height - Seated (Max) [Max]	0.248 in
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	1.7 A
Ripple Current @ Low Frequency	85 mA
Size / Dimension [diameter]	5 mm
Size / Dimension [diameter]	0.197 "
Surface Mount Land Size [x]	0.209 in
Surface Mount Land Size [x]	5.3 mm
Surface Mount Land Size [y]	5.3 mm
Surface Mount Land Size [y]	0.209 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	6.3 V

Part	Mounting Type	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lifetime @ Temp.	Ripple Current @ High Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Applications	Ripple Current @ Low Frequency	Package / Case	Tolerance	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET A765BC107M0JLAE025	Surface Mount	25 mOhm	5 mm	0.197 "	100 µF	2000 Hrs	1.7 A	105 ░C	-55 °C	6.3 V	5.3 mm	0.209 in	5.3 mm	0.209 in	General Purpose	85 mA	Radial Can - SMD	20 %	Polymer	6.3 mm	0.248 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 25mOhm 2000 Hrs @ 105°C
