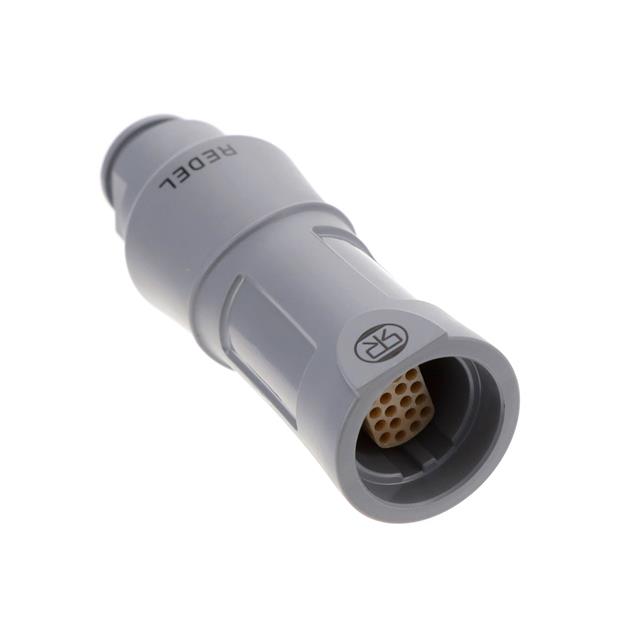

SRN.M22.GLL.6GZ

Active

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Search across all available documentation for this part.

Active

LEMO

CONN RCPT FMALE 22P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRN.M22.GLL.6GZ

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone
Cable Opening [custom]	0.209 in, 0.256 in
Cable Opening [custom]	6.5 mm, 5.3 mm
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)
Number of Positions	22 positions
Operating Temperature [Max]	170 °C
Operating Temperature [Min]	-50 °C
Orientation	N
Primary Material	Plastic
Shell Material	Sulfone
Shell Size - Insert	M22
Shielding	Unshielded

Part	Shielding	Ingress Protection	Shell Material	Color	Insert Material	Number of Positions	Contact Finish - Mating	Fastening Type	Connector Type	Current Rating (Amps)	Cable Opening [custom]	Cable Opening [custom]	Applications	Shell Size - Insert	Orientation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Backshell Material, Plating	Features
LEMO SRN.M22.GLL.6GZ	Unshielded	IP50	Sulfone	Gray	Polyetheretherketone (PEEK)	22 positions	Gold	Push-Pull	Receptacle Female Sockets	2 A	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	M22	N	Free Hanging (In-Line)	-50 °C	170 °C	Plastic	Sulfone	Backshell

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

22 Position Circular Connector Receptacle, Female Sockets Solder Cup
