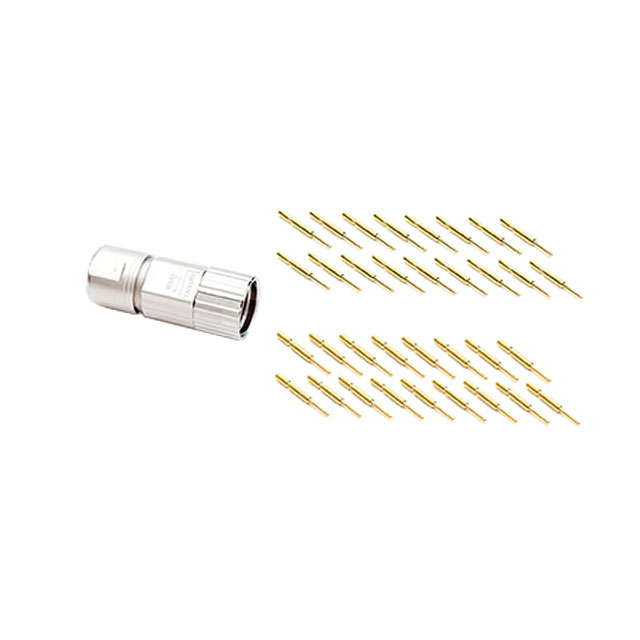

MA7CAE1700S-S3-KIT
ActiveAmphenol Sine Systems Corp
CONN PLUG FMALE 17POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
MA7CAE1700S-S3-KIT
ActiveAmphenol Sine Systems Corp
CONN PLUG FMALE 17POS CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MA7CAE1700S-S3-KIT |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 9 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-17 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 125 VAC |
MA7CAE Series
| Part | Mounting Type | Shell Size - Insert | Color | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Connector Type | Ingress Protection | Orientation | Shell Finish | Voltage Rating | Shielding | Features | Current Rating (Amps) | Termination | Contact Finish - Mating | Number of Positions | Material Flammability Rating | Contact Shape | Note | Contact Size | Housing Color | Type | Contact Type | Insert Material | Backshell Material, Plating | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Number of Positions | Contact Material | Applications | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-17 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Female Sockets Plug | IP67 - Dust Tight Waterproof | N | Nickel | 125 VAC | Shielded | Backshell Coupling Nut | 9 A | Crimp | Gold | ||||||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-12 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Male Pins Plug | IP67 - Dust Tight Waterproof | N | Nickel | 160 V | Shielded | Backshell Coupling Nut | 10 A | Crimp | Gold | 12 | |||||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-12 | -20 C | 130 °C | Zinc Die Cast | Plug Housing | IP67 - Dust Tight Waterproof | N | Nickel | Shielded | Backshell Coupling Nut | 12 | UL94 V-0 | Circular | Contacts Not Included | 1 mm | Silver | For Female Sockets or Male Pins | Crimp | Polyamide (PA66) Nylon 6/6 | |||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-17 | -20 C | 130 °C | Zinc Die Cast | Plug Housing | IP67 - Dust Tight Waterproof | N | Nickel | Shielded | Backshell Coupling Nut | UL94 V-0 | Circular | Contacts Not Included | 1 mm | Silver | For Female Sockets or Male Pins | Crimp | Polyamide (PA66) Nylon 6/6 | ||||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-16 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Female Sockets Plug | IP67 - Dust Tight Waterproof | E | Nickel | 125 VAC | Shielded | Backshell Coupling Nut | 9 A | Crimp | Gold | UL94 V-0 | Polyamide (PA66) Nylon 6/6 | Nickel Zinc Die Cast | 0.433 in | 0.295 in | 7.5 mm | 11 mm | 16 | Copper Alloy | Communication Systems Industrial Medical | Push-Twist | |||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-17 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Male Pins Plug | IP67 - Dust Tight Waterproof | N | Nickel | 125 VAC | Shielded | Backshell Coupling Nut | 9 A | Crimp | Gold | ||||||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-16 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Male Pins Plug | IP67 - Dust Tight Waterproof | E | Nickel | 125 VAC | Shielded | Backshell Coupling Nut | 9 A | Crimp | Gold | UL94 V-0 | Polyamide (PA66) Nylon 6/6 | Nickel Zinc Die Cast | 0.433 in | 0.295 in | 7.5 mm | 11 mm | 16 | Copper Alloy | Communication Systems Industrial Medical | Push-Twist | |||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-12 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Male Pins Plug | IP67 - Dust Tight Waterproof | N | Nickel | 160 V | Shielded | Backshell Coupling Nut | 10 A | Crimp | Gold | 12 | |||||||||||||||||
Amphenol Sine Systems Corp | Free Hanging (In-Line) | M23-12 | Silver | Metal | -20 C | 130 °C | Zinc Die Cast | Female Sockets Plug | IP67 - Dust Tight Waterproof | N | Nickel | 160 V | Shielded | Backshell Coupling Nut | 10 A | Crimp | Gold | 12 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 56.88 | |
Description
General part information
MA7CAE Series
17 Position Circular Connector Plug, Female Sockets Crimp
