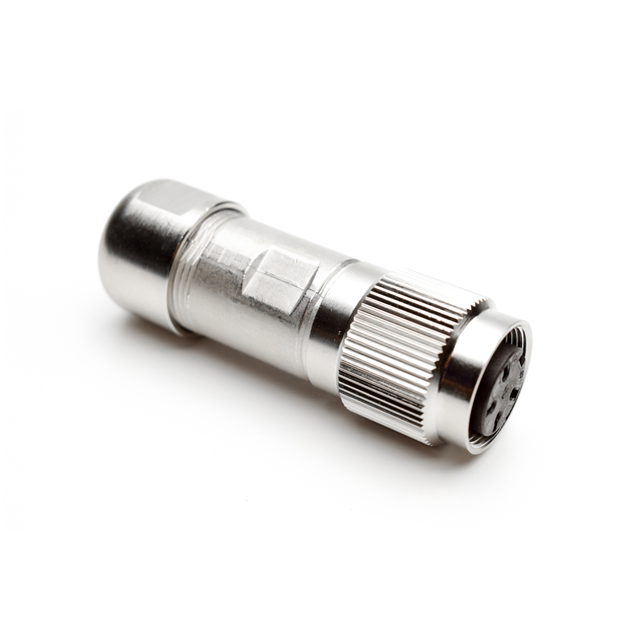

C091 11D004 002 4

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11D004 002 4

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-4
Shielding	Shielded
Type	For Female Sockets

Part	Contact Type	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Ingress Protection	Shell Size - Insert	Type	Material Flammability Rating	Shielding	Mounting Type	Shell Finish	Number of Positions	Note	Contact Shape	Housing Color	Orientation	Shell Material	Features	Insert Material
Amphenol Sine Systems Corp C091 11D004 002 4	Crimp	1.5 mm	100 °C	-40 °C	Plug Housing	IP68 - Dust Tight Waterproof	M16-4	For Female Sockets	UL94 V-0	Shielded	Free Hanging (In-Line)	Nickel	4	Contacts Not Included	Circular	Silver	Keyed	Zinc Die Cast	Backshell Cable Clamp Coupling Nut	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
