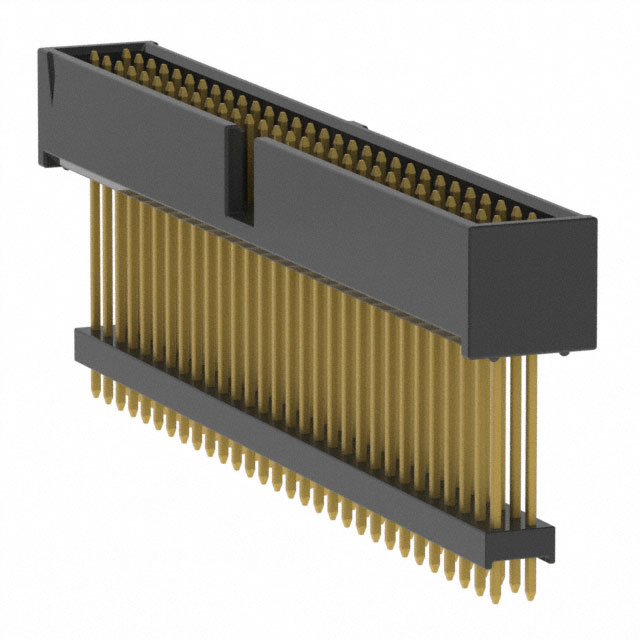

ZSS-130-05-G-D-930

Active

Samtec Inc.

CONN HDR .100" 60POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ZSS-130-05-G-D-930

Active

Samtec Inc.

CONN HDR .100" 60POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-130-05-G-D-930

null

ZSS-130 Series

Part	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Height	Insulation Height	Contact Type	Style	Connector Type	Current Rating (Amps)	Features	Insulation Color	Insulation Material	Contact Finish - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Fastening Type	Contact Material	Overall Contact Length	Overall Contact Length	Number of Positions	Number of Positions Loaded	Contact Finish - Mating	Termination	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. ZSS-130-02-S-D-640
Samtec Inc. ZSS-130-02-T-D-615
Samtec Inc. ZSS-130-02-L-D-630	2.54 mm	0.1 in	6.35 mm	0.25 in	-55 °C	125 °C	2	0.63 in	16 mm	Male Pin	Board to Board Cable	Elevated Header	3 A	Keying Slot	Black	Polyester Glass Filled	Tin	Square	10 çin	0.25 çm	Shrouded - 4 Wall	2.54 mm	0.1 in	0.1 in	2.54 mm	Through Hole	UL94 V-0	Push-Pull	Phosphor Bronze	0.73 in	18.54 mm	60	All	Gold	Solder
Samtec Inc. ZSS-130-04-F-D-840	2.54 mm	0.1 in	6.35 mm	0.25 in	-55 °C	125 °C	2			Male Pin	Board to Board Cable	Elevated Header	3 A	Keying Slot	Black	Polyester Glass Filled	Tin	Square	3 µin	0.076 µm	Shrouded - 4 Wall	2.29 mm	0.09 "	0.1 in	2.54 mm	Through Hole	UL94 V-0	Push-Pull	Phosphor Bronze	0.93 in	23.62 mm	60	All	Gold	Solder	0.84 in	21.34 mm
Samtec Inc. ZSS-130-05-G-D-930
Samtec Inc. ZSS-130-05-L-D-940
Samtec Inc. ZSS-130-03-S-D-490
Samtec Inc. ZSS-130-05-L-D-915
Samtec Inc. ZSS-130-08-G-D-1215
Samtec Inc. ZSS-130-02-H-D-545	2.54 mm	0.1 in	6.35 mm	0.25 in	-55 °C	125 °C	2			Male Pin	Board to Board Cable	Elevated Header	3 A	Keying Slot	Black	Polyester Glass Filled	Gold	Square	30 Áin	0.76 Ám	Shrouded - 4 Wall	4.7 mm	0.185 in	0.1 in	2.54 mm	Through Hole	UL94 V-0	Push-Pull	Phosphor Bronze	0.73 in	18.54 mm	60	All	Gold	Solder			3 µin	0.076 µm	13.84 mm	0.545 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.40

Description

General part information

ZSS-130 Series

Connector Header position

Documents

Technical documentation and resources
