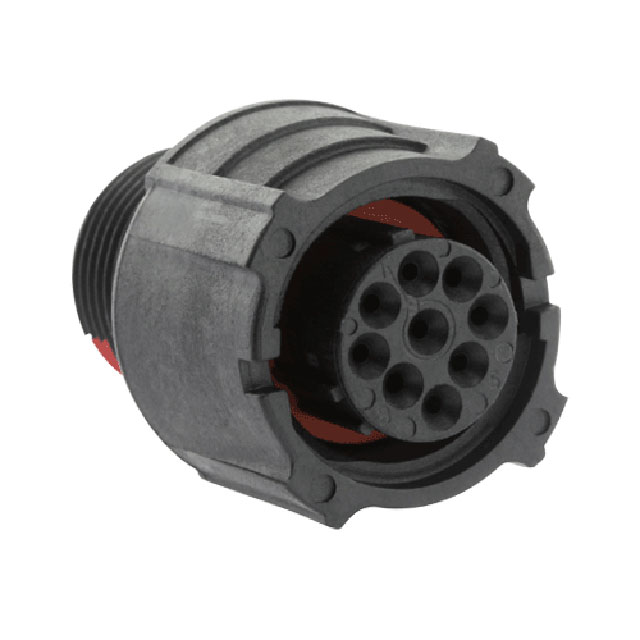

CL1F1203

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 9POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CL1F1203

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert [Max]	2
Shell Size - Insert [Min]	1
Shielding	Unshielded
Type	For Female Sockets

Part	Housing Color	Connector Type	Shielding	Ingress Protection	Features	Insert Material	Number of Positions	Material Flammability Rating	Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Note	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material	Contact Type	Orientation	Mounting Type	Fastening Type	Contact Shape	Shell Size - Insert
Souriau-Sunbank by Eaton CL1F1203	Black	Plug Housing	Unshielded	IP68 - Dust Tight Waterproof	Coupling Nut	Thermoplastic	9	UL94 V-0	For Female Sockets	2	1	Contacts Not Included	20	125 °C	-40 °C	Thermoplastic Halogen Free	Crimp and Solder Cup	Keyed	Free Hanging (In-Line)	Twist Latch	Circular
Souriau-Sunbank by Eaton CL1F1201	Black	Plug Housing	Unshielded	IP67 - Dust Tight Waterproof	Coupling Nut	Thermoplastic	9	UL94 V-0	For Female Sockets	2	1	Contacts Not Included	20	125 °C	-40 °C	Thermoplastic Halogen Free	Crimp and Solder Cup	Keyed	Free Hanging (In-Line)	Twist Latch	Circular
Souriau-Sunbank by Eaton CL1F1103	Black	Plug Housing	Unshielded	IP68 - Dust Tight Waterproof	Coupling Nut	Thermoplastic	4	UL94 V-0	For Female Sockets			Contacts Not Included	16	125 °C	-40 °C	Thermoplastic Halogen Free	Crimp and Solder Cup	Keyed	Free Hanging (In-Line)	Twist Latch	Circular	1-1
Souriau-Sunbank by Eaton CL1F1200	Black	Plug Housing	Unshielded	IP40	Coupling Nut	Thermoplastic	9	UL94 V-0	For Female Sockets	2	1	Contacts Not Included	20	125 °C	-40 °C	Thermoplastic Halogen Free	Crimp and Solder Cup	Keyed	Free Hanging (In-Line)	Twist Latch	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.38

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
