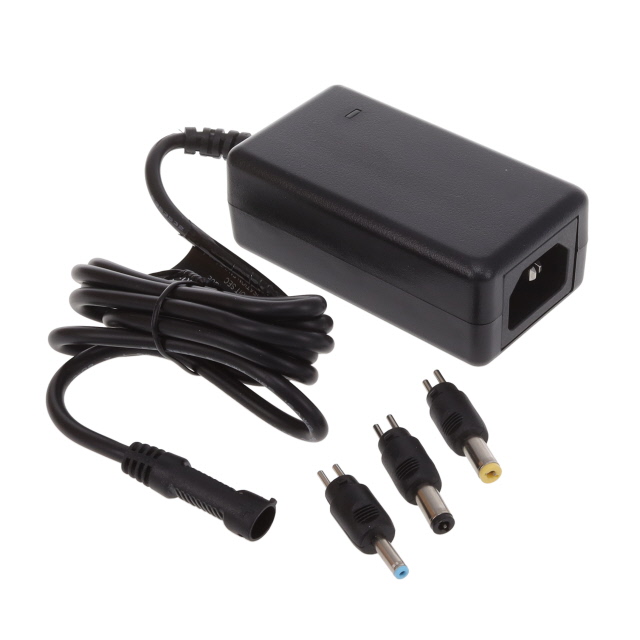

TR9CC2000T00CFR6B

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 7.5V 15W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 7.5V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9CC2000T00CFR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	CE, ETL, UL, CCC, cULus, NOM, FCC, BSMI, UKRSepro, LPS, cETLus, PSE, VCCI, CB, RCM, S-Mark, EAC
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	2 A
Efficiency	Level VI, CoC Tier 1
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	87 mm
Size / Dimension [x]	3.43 in
Size / Dimension [y]	1.83 in
Size / Dimension [y]	46.5 mm
Size / Dimension [z]	1.26 in
Size / Dimension [z]	32 mm
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	7.5 V

Part	Cord Length	Cord Length	Region Utilized	Power (Watts)	Approval Agency	Efficiency	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	No Load Power Consumption [Max]	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	Output Connector	Output Connector [diameter]	Output Connector [x]	Voltage - Input [Min]	Voltage - Input [Max]	Form	Current - Output (Max) [Max]	Input Connector	Standard Number	Applications
GlobTek, Inc. TR9CC2000T00CFR6B	1.2 m	47.2 in	International	15 W	BSMI CB CCC CE cETLus cULus EAC ETL FCC LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	CoC Tier 1 Level VI	7.5 V	1.83 in	1.26 in	32 mm	87 mm	46.5 mm	3.43 in	75 mW	Cord	-20 C	40 °C	Barrel Plug	2.5 mm 5.5 mm	11 mm	90 VAC	264 VAC	Desktop (Class I)	2 A	IEC 320-C14	60335-1 60601-1 60950-1 62368-1	Household Appliances ITE (Commercial) Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.75

General part information

7.5V 15 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
