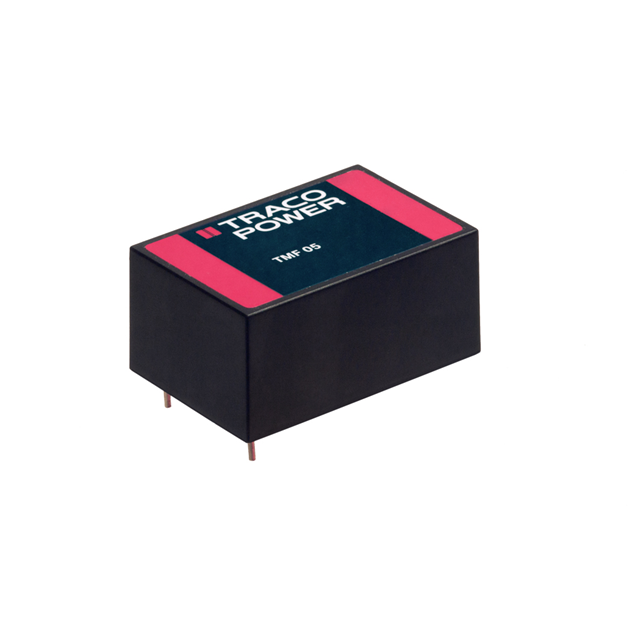

TMF 05124
ActiveTraco Power
AC/DC CONVERTER 24V 5W
Deep-Dive with AI
Search across all available documentation for this part.
TMF 05124
ActiveTraco Power
AC/DC CONVERTER 24V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMF 05124 |
|---|---|
| Applications | Medical |
| Current - Output (Max) [Max] | 208 mA |
| Features | Universal Input |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 1.62 " |
| Size / Dimension [x] | 41.2 mm |
| Size / Dimension [y] | 27.2 mm |
| Size / Dimension [y] | 1.07 in |
| Size / Dimension [z] | 19.1 mm |
| Size / Dimension [z] | 0.75 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 120 VDC |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 34.10 | |
| 10 | $ 30.11 | |||
| 25 | $ 29.11 | |||
| 50 | $ 28.37 | |||
| 100 | $ 27.65 | |||
| 250 | $ 26.73 | |||
| 500 | $ 23.49 | |||
Description
General part information
TMF 05 Series
Enclosed AC DC Converters 1 Output 24V 208mA 90 ~ 264 VAC, 120 ~ 370 VDC Input
