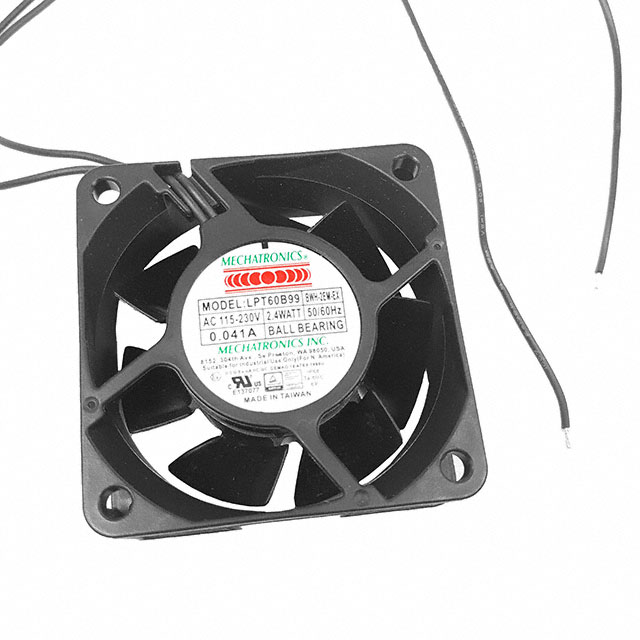

LPT60B99-BWHR-2EM-EX
ActiveMechatronics Bearing Group
EC FAN AXIAL 60 X 60 X 25MM 100-
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LPT60B99-BWHR-2EM-EX
ActiveMechatronics Bearing Group
EC FAN AXIAL 60 X 60 X 25MM 100-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LPT60B99-BWHR-2EM-EX |
|---|---|
| Air Flow [Max] | 0.543 m³/min |
| Air Flow [Max] | 19.4 CFM |
| Air Flow [Min] | 0.535 m³/min |
| Air Flow [Min] | 19.1 CFM |
| Approval Agency | ATEX |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.026 A, 41 mA |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Dual Speed, Dual Voltage, Electronic Commutation (EC) |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material - Blade | Metal |
| Material - Frame | Plastic |
| Noise | 31 dB(A) |
| Power (Watts) | 2.4 W, 2 W |
| RPM [Max] | 3950 RPM |
| RPM [Min] | 3850 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure [Max] | 0.18 in H2O |
| Static Pressure [Max] | 44.8 Pa |
| Static Pressure [Min] | 42.3 Pa |
| Static Pressure [Min] | 0.17 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 230 VAC |
| Voltage - Rated [Min] | 115 VAC |
| Voltage Range [Max] | 264 VAC |
| Voltage Range [Min] | 90 VAC |
| Weight | 60.33 g |
| Weight | 0.133 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.73 | |
| 10 | $ 39.94 | |||
| 25 | $ 38.42 | |||
| 50 | $ 35.89 | |||
| 100 | $ 33.11 | |||
| 250 | $ 32.61 | |||
Description
General part information
LPT60 Series
Fan Tubeaxial 115/230VAC Square - 60mm L x 60mm H Ball 19.1 ~ 19.4 CFM (0.535 ~ 0.543m³/min) 2 Wire Leads
