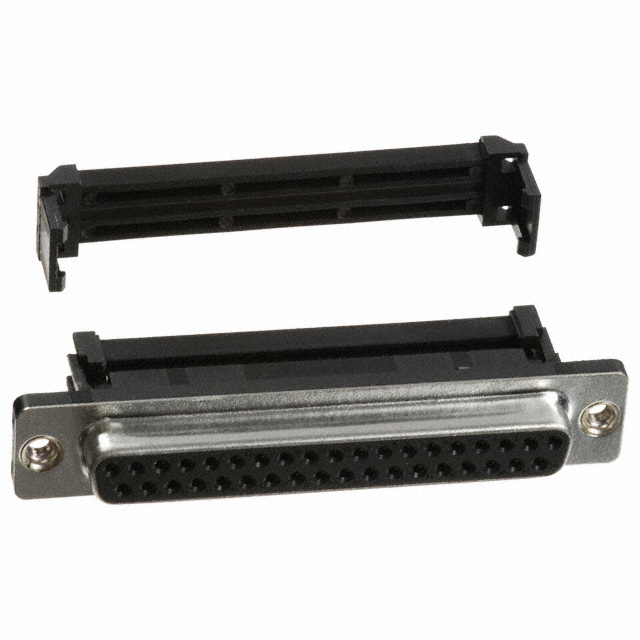

A-DFF 37 LPIII/Z-UNC

Active

Assmann WSW Components

CONN D-SUB RCPT 37POS IDC

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB RCPT 37POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	A-DFF 37 LPIII/Z-UNC

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	IDC, Ribbon Cable
Voltage Rating	250 VDC

Part	Color	Number of Rows	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Shell Size, Connector Layout	Features	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness	Termination	Voltage Rating	Contact Material	Dielectric Material	Contact Type	Contact Finish	Flange Feature	Mounting Type
Assmann WSW Components A-DFF 37 LPIII/Z-UNC	Black	2	Receptacle Female Sockets	105 ░C	-55 °C	D-Sub	4 (DC C)	Feed Through Strain Relief	37	3 A	UL94 V-0	Flash	IDC Ribbon Cable	250 VDC	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Gold	Housing/Shell (4-40)	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position D-Sub Receptacle, Female Sockets Connector
