C09131H0061025U

Active

Amphenol Sine Systems Corp

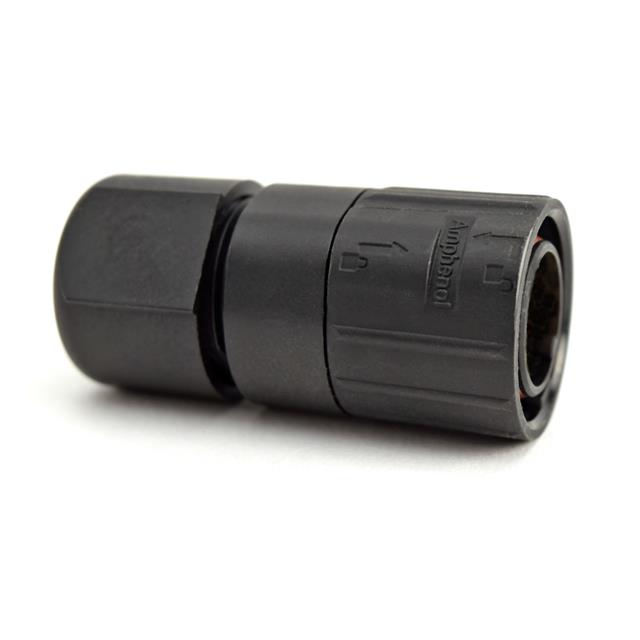

MALE CABLE CONNECTOR, QUICKLOCK,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C091 M16 Q Quicklock

C09131H0061025U

Active

Amphenol Sine Systems Corp

MALE CABLE CONNECTOR, QUICKLOCK,

Deep-Dive with AI

DocumentsDatasheet C091 M16 Q Quicklock

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C09131H0061025U

Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	0.413 in
Cable Opening [Max] [diameter]	10.5 mm
Cable Opening [Min] [diameter]	0.335 in
Cable Opening [Min] [diameter]	8.5 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	7 A
Features	Coupling Nut, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	M16-6
Shielding	Unshielded
Voltage Rating	100 V

C09131H Series

Part	Insert Material	Color	Primary Material	Current Rating (Amps)	Shielding	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Number of Positions	Shell Size - Insert	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Ingress Protection	Features	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Backshell Material, Plating	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Amphenol Sine Systems Corp C09131H0042005U	Thermoplastic	Black	Plastic	10 A	Unshielded	150 VDC	UL94 V-0	Gold	4	M16-4	0.157 in	0.335 in	8.5 mm	4 mm	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp C09131H0031005U	Thermoplastic	Black	Plastic	10 A	Unshielded	150 VDC	UL94 V-0	Silver		M16-3	0.157 in	0.335 in	8.5 mm	4 mm	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp C09131H0121005U	Thermoplastic	Black	Plastic	3 A	Unshielded	32 V	UL94 V-0	Silver	12	M16-12	0.157 in	0.335 in	8.5 mm	4 mm	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp C09131H0072005U	Thermoplastic	Black	Plastic	7 A	Unshielded	100 V	UL94 V-0	Gold	7	M16-7	0.157 in	0.335 in	8.5 mm	4 mm	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp C09131H0051025U	Thermoplastic	Black	Plastic	7 A	Unshielded	100 V	UL94 V-0	Silver		M16-5					IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)	0.335 in	0.413 in	10.5 mm	8.5 mm
Amphenol Sine Systems Corp C09131H1141025U	Thermoplastic	Black	Plastic	3 A	Unshielded	32 V	UL94 V-0	Silver	14	M16-14					IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)	0.335 in	0.413 in	10.5 mm	8.5 mm
Amphenol Sine Systems Corp C09131H0061025U	Thermoplastic	Black	Plastic	7 A	Unshielded	100 V	UL94 V-0	Silver	6	M16-6					IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)	0.335 in	0.413 in	10.5 mm	8.5 mm
Amphenol Sine Systems Corp C09131H0052005U	Thermoplastic	Black	Plastic	7 A	Unshielded	100 V	UL94 V-0	Gold		M16-5	0.157 in	0.335 in	8.5 mm	4 mm	IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp C09131H0071025U	Thermoplastic	Black	Plastic	7 A	Unshielded	100 V	UL94 V-0	Silver	7	M16-7					IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)	0.335 in	0.413 in	10.5 mm	8.5 mm
Amphenol Sine Systems Corp C09131H1072025U	Thermoplastic	Black	Plastic	7 A	Unshielded	32 V	UL94 V-0	Gold	7	M16-7					IP68 - Dust Tight Waterproof	Backshell Coupling Nut	Male Pins Plug	100 °C	-40 °C	Keyed	Thermoplastic	Free Hanging (In-Line)	0.335 in	0.413 in	10.5 mm	8.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.13
		10	$ 7.32
		25	$ 6.89
		50	$ 6.72
		100	$ 6.54
		250	$ 6.22

Description

General part information

C09131H Series

6 Position Circular Connector Plug, Male Pins Solder Cup
