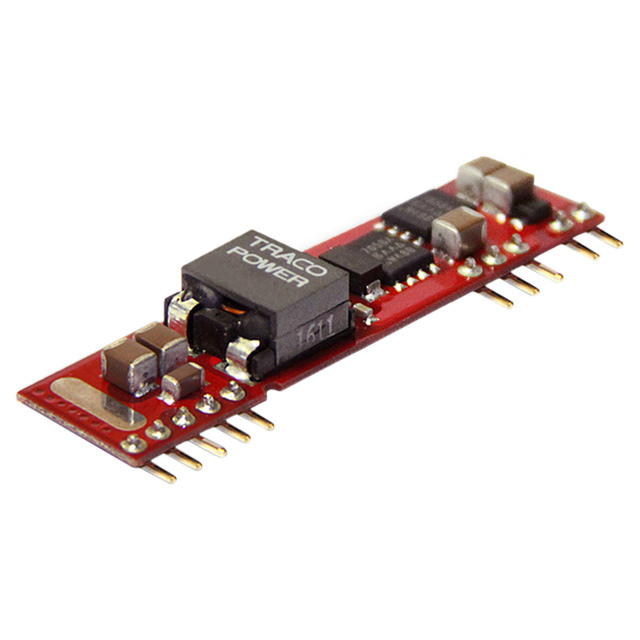

TOS 16-12SIL
ObsoleteTraco Power
DC DC CONVERTER 0.75-5V 80W
Deep-Dive with AI
Search across all available documentation for this part.
TOS 16-12SIL
ObsoleteTraco Power
DC DC CONVERTER 0.75-5V 80W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TOS 16-12SIL |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 16 A |
| Efficiency | 92 % |
| Features | SCP, OCP, OTP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 80 W |
| Size / Dimension [x] | 0.9 " |
| Size / Dimension [x] | 22.9 mm |
| Size / Dimension [y] | 6 mm |
| Size / Dimension [y] | 0.23 in |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 14 V |
| Voltage - Input (Min) [Min] | 8.3 V |
| Voltage - Output 1 [Max] | 5 V |
| Voltage - Output 1 [Min] | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TOS 16 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5V 16A 8.3V - 14V Input
Documents
Technical documentation and resources
No documents available
