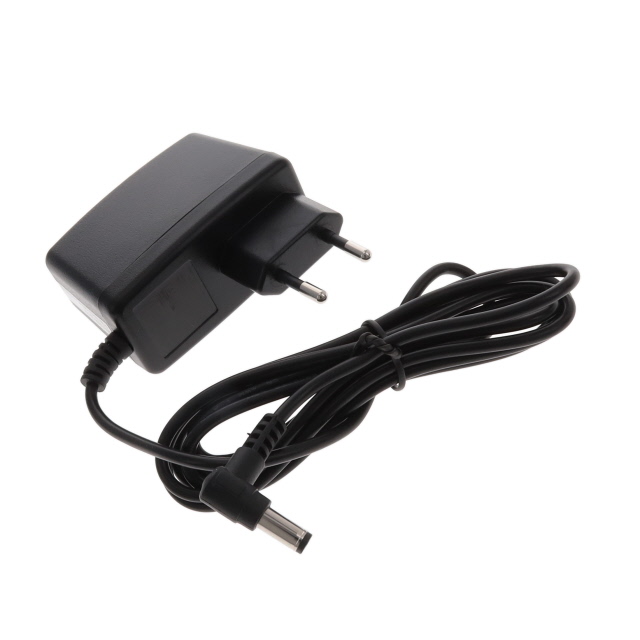

TRG1507-E-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MNT ADAPTER 7.5V 12W
Deep-Dive with AI
Search across all available documentation for this part.
TRG1507-E-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC WALL MNT ADAPTER 7.5V 12W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TRG1507-E-01E03 VI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cULus, TUV, GS, FCC, CE |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 1.6 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | KSC 8305 |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Polarization | Positive Center |
| Power (Watts) | 12 W |
| Region Utilized | Europe |
| Size / Dimension [x] | 72 mm |
| Size / Dimension [x] | 2.84 in |
| Size / Dimension [y] | 1.38 " |
| Size / Dimension [y] | 35 mm |
| Size / Dimension [z] | 52 mm |
| Size / Dimension [z] | 2.05 in |
| Standard Number | 60950-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 7.5 V |
TRG1507 Series
| Part | Current - Output (Max) [Max] | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | No Load Power Consumption [Max] | Approval Agency | Voltage - Output | Cord Length | Cord Length | Input Connector | Input Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Form | Power (Watts) | Region Utilized | Polarization | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Weight | Weight | Output Connector | Output Connector [diameter] | Output Connector [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cincon Electronics Co. LTD | 1.6 A | 60950-1 | 90 VAC | 264 VAC | 75 mW | CE cULus FCC GS PSE TUV | 7.5 V | 70.9 in | 1.8 m | AS 3112 | Fixed Blade | ITE (Commercial) | -20 C | 60 °C | Wall Mount (Class II) | 12 W | Australia | Positive Center | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | |||||
Cincon Electronics Co. LTD | 1.6 A | 60950-1 | 90 VAC | 264 VAC | 75 mW | CE cULus FCC GS PSE TUV | 7.5 V | 70.9 in | 1.8 m | KSC 8305 | Fixed Blade | ITE (Commercial) | -20 C | 60 °C | Wall Mount (Class II) | 12 W | Europe | Positive Center | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | |||||
Cincon Electronics Co. LTD | 1.6 A | 60950-1 | 90 VAC | 264 VAC | 75 mW | CE cULus FCC GS PSE TUV | 7.5 V | 70.9 in | 1.8 m | BS 1363 | Fixed Blade | ITE (Commercial) | -20 C | 60 °C | Wall Mount (Class I) | 12 W | United Kingdom | Positive Center | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | |||||
Cincon Electronics Co. LTD | 1.6 A | 90 VAC | 264 VAC | 75 mW | CE cULus FCC GS PSE TUV | 7.5 V | 70.9 in | 1.8 m | NEMA 1-15P | Fixed Blade | ITE (Commercial) | -20 C | 60 °C | Wall Mount (Class II) | 12 W | North America | Positive Center | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI | 0.309 lb | 140 g | Barrel Plug | 2.1 mm 5.5 mm | 12 mm | |
Cincon Electronics Co. LTD | 1.6 A | 60950-1 | 90 VAC | 264 VAC | 75 mW | CE cULus FCC GS PSE TUV | 7.5 V | 70.9 in | 1.8 m | NEMA 1-15P | Fixed Blade | ITE (Commercial) | -20 C | 60 °C | Wall Mount (Class II) | 12 W | North America | Positive Center | 52 mm | 1.38 " | 2.05 in | 72 mm | 35 mm | 2.84 in | CoC Tier 2 Level VI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.00 | |
| 5 | $ 10.67 | |||
| 10 | $ 10.35 | |||
| 25 | $ 9.83 | |||
| 50 | $ 9.44 | |||
| 100 | $ 8.85 | |||
Description
General part information
TRG1507 Series
7.5V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
