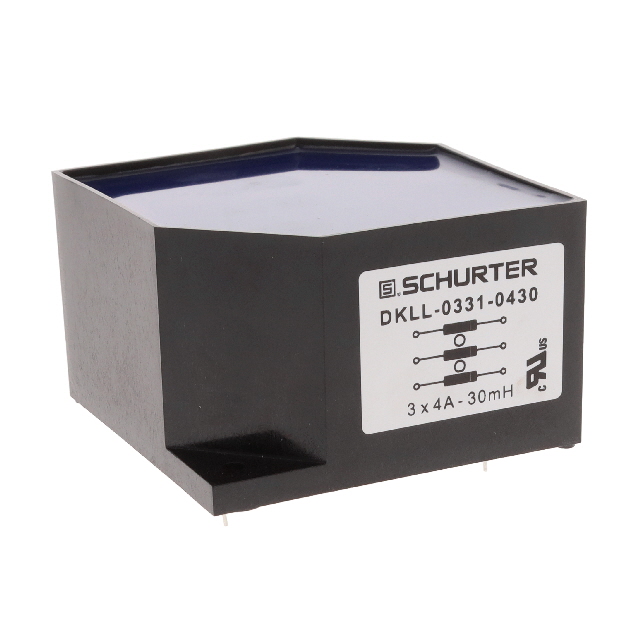

DKLL-0331-0430

Obsolete

SCHURTER Inc.

CMC 4A 3LN TH

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

CMC 4A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Specification	DKLL-0331-0430

Current Rating (Max) [Max]	4 A
DC Resistance (DCR) (Max) [Max]	155 mOhm
Mounting Type	Through Hole
Number of Lines	3
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	3.15 in
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Size / Dimension [y]	3.15 in
Voltage Rating - AC	540 V
Voltage Rating - DC	760 V

Part	Number of Lines	Voltage Rating - DC	Voltage Rating - AC	DC Resistance (DCR) (Max) [Max]	Mounting Type	Package / Case	Current Rating (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Operating Temperature [custom]	DC Resistance (DCR) (Max)
SCHURTER Inc. DKLL-0331-0430	3	760 V	540 V	155 mOhm	Through Hole	Nonstandard	4 A	3.15 in	80 mm	80 mm	3.15 in	-25 °C 100 °C
SCHURTER Inc. DKLL-0331-0350	3	760 V	540 V		Through Hole	Nonstandard	3 A	3.15 in	80 mm	80 mm	3.15 in	-25 °C 100 °C	260 mOhm
SCHURTER Inc. DKLL-0346-0330	3	760 V	540 V	130 mOhm	Through Hole	Nonstandard	3 A	1.969 in	50 mm	50 mm	1.969 in	-25 °C 100 °C
SCHURTER Inc. DKLL-0346-0804	3	760 V	540 V	22 mOhm	Through Hole	Nonstandard	8 A	1.969 in	50 mm	50 mm	1.969 in	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 56.40

General part information

3 Line Common Mode Choke Through Hole 4A DCR 155mOhm
