A10WBM-P16XBC0-0000

Active

ODU

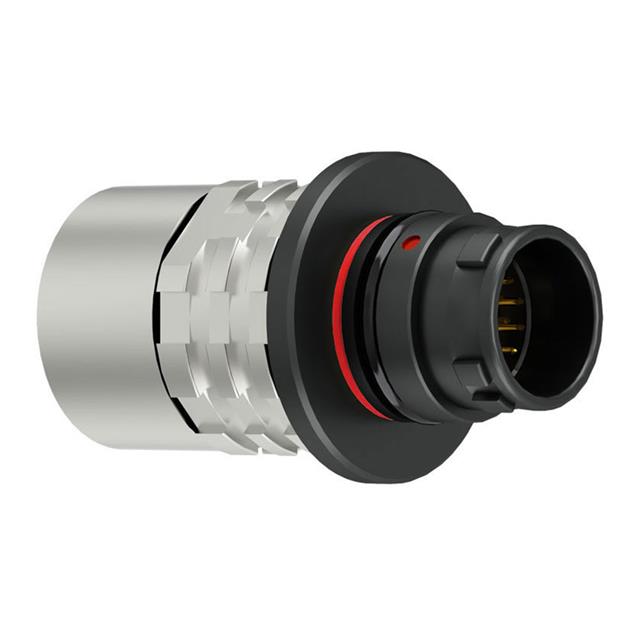

ODU AMC HD PLUG, STY 1, SZ 0, SE

Search across all available documentation for this part.

Active

ODU

ODU AMC HD PLUG, STY 1, SZ 0, SE

Technical Specifications

Parameters and characteristics for this part

Specification	A10WBM-P16XBC0-0000

Applications	Medical, Industrial, Military
Backshell Material, Plating	Ruthenium over Electroless Nickel, Brass
Cable Opening [custom]	0.276 in
Cable Opening [custom]	7 mm
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Ruthenium over Electroless Nickel
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded

Part	Shell Material	Applications	Ingress Protection	Insert Material	Number of Positions	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Material	Shell Size - Insert	Mounting Type	Backshell Material, Plating	Cable Opening [custom]	Cable Opening [custom]	Orientation	Primary Material	Contact Finish - Mating	Fastening Type	Connector Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions
ODU A10WBM-P16XBC0-0000	Brass	Industrial Medical Military	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	16	Shielded	-51 °C	125 °C	Black Silver	Ruthenium over Electroless Nickel	1.27 µm	50 µin	Backshell	Copper Alloy	0	Free Hanging (In-Line)	Brass Ruthenium over Electroless Nickel	0.276 in	7 mm	B	Metal	Gold	Detent Lock Push-Pull	Male Pins Plug	UL94 V-0
ODU A10WBM-P09XMM0-0000	Brass	Industrial Medical Military	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)		Shielded	-51 °C	125 °C	Black Silver	Ruthenium over Electroless Nickel	1.27 µm	50 µin	Backshell	Copper Alloy	0	Free Hanging (In-Line)	Brass Ruthenium over Electroless Nickel	0.276 in	7 mm	B	Metal	Gold	Detent Lock Push-Pull	Male Pins Plug	UL94 V-0	1 A 5 A	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Plug, Male Pins Solder Cup
