A3C-16P-2DSA

Obsolete

Hirose Electric USA, Inc.

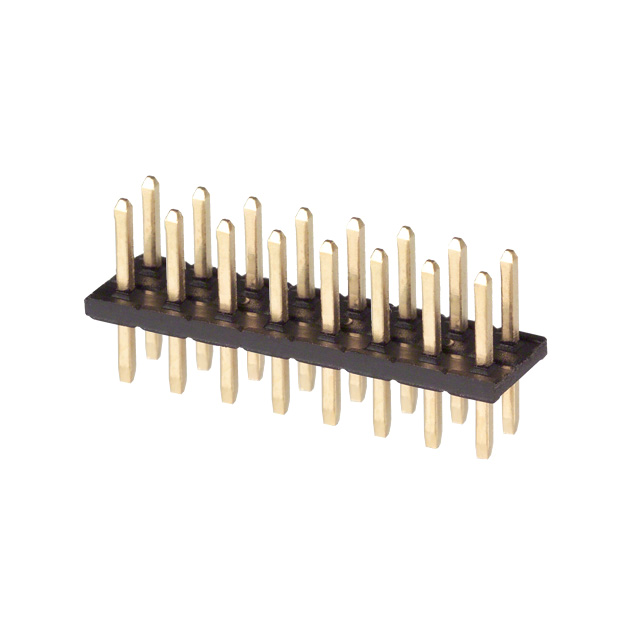

CONN HEADER VERT 16POS 2MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER VERT 16POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	A3C-16P-2DSA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post	0.102 in
Contact Length - Post	2.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.9 mm
Insulation Height	0.035 in
Insulation Material	Polyamide (PA), Nylon
Mated Stacking Heights	7.9 mm, 5.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7 mm
Overall Contact Length	0.276 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	200 V

Part	Connector Type	Mounting Type	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Style	Contact Length - Post	Contact Length - Post	Insulation Color	Termination	Insulation Height	Insulation Height	Contact Shape	Insulation Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Shrouding	Number of Positions Loaded	Number of Rows	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post
Hirose Electric USA, Inc. A3C-16P-2DSA(30)	Header	Through Hole	16	0.138 in	3.5 mm	Male Pin	0.079 in	2 mm	Brass	Board to Board Cable	0.102 in	2.6 mm	Black	Solder	0.9 mm	0.035 in	Square	Nylon Polyamide (PA)	Push-Pull	85 °C	-55 °C	UL94 V-0	Unshrouded	All	2	7 mm	0.276 in	Gold	0.079 in	2 mm
Hirose Electric USA, Inc. A3C-16P-2DSA	Header	Through Hole	16	0.138 in	3.5 mm	Male Pin	0.079 in	2 mm	Brass	Board to Board Cable	0.102 in	2.6 mm	Black	Solder	0.9 mm	0.035 in	Square	Nylon Polyamide (PA)	Push-Pull	85 °C	-55 °C	UL94 V-0	Unshrouded	All	2	7 mm	0.276 in	Gold	0.079 in	2 mm	5.1 mm 7.9 mm	Gold	200 V	0.203 Ám	8 Áin	Flash
