895-142-540-202

Active

EDAC Inc.

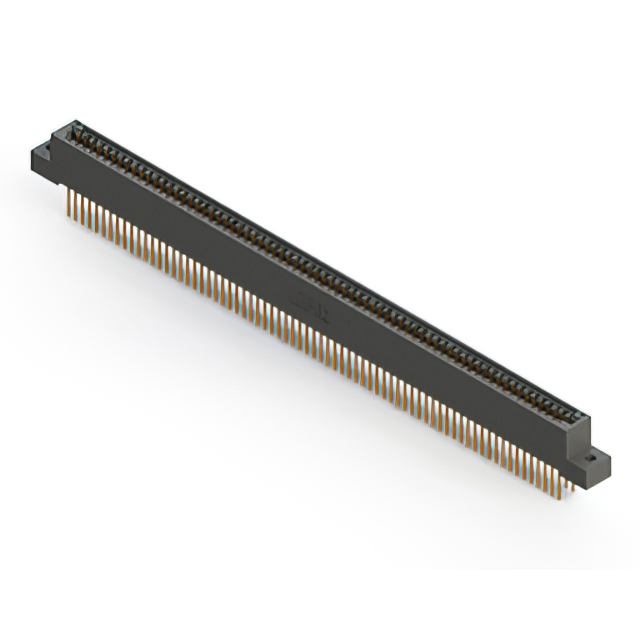

2.54MM STRAIGHT 142P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

895-142-540-202

Active

EDAC Inc.

2.54MM STRAIGHT 142P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	895-142-540-202

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	142
Number of Positions/Bay/Row [custom]	71
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

895-142 Series

...

Part	Material - Insulation	Termination Rows	Mounting Type	Card Type	Gender	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Read Out	Number of Positions	Contact Material	Contact Type	Number of Rows	Color	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 895-142-541-507	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-142-521-201	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71
EDAC Inc. 895-142-555-208	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	4-40 Flush Mount Threaded Insert Top Opening	Card Extender
EDAC Inc. 895-142-541-202	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	Flush Mount Top Opening Unthreaded		3.25 mm	0.128 "
EDAC Inc. 895-142-521-208	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 895-142-559-802	Polyphenylene Sulfide (PPS)	2	Through Hole Right Angle	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71					3.25 mm	0.128 in
EDAC Inc. 895-142-540-202	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	Flush Mount Top Opening Unthreaded		3.25 mm	0.128 "
EDAC Inc. 895-142-520-507	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	M3 Threaded Insert Top Mount Opening
EDAC Inc. 895-142-542-812	Polyphenylene Sulfide (PPS)	2	Through Hole	Non Specified - Dual Edge	Female	Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	Side Mount Opening Unthreaded				3.25 mm	0.128 in
EDAC Inc. 895-142-555-508	Polyphenylene Sulfide (PPS)	2	Board Edge Straddle Mount	Non Specified - Dual Edge	Female	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Gold	Dual	142	Copper Alloy	Cantilever	2	Black	2.54 mm	0.1 in	71	4-40 Threaded Insert Top Mount Opening	Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 114.43
LCSC	Piece	1	$ 49.31
		200	$ 19.08
		500	$ 18.41
		1000	$ 18.08

Description

General part information

895-142 Series

142 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
