JL04V-2E10SL-3PE-B-R
ActiveJAE Electronics
CONN RCPT MALE 3P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
JL04V-2E10SL-3PE-B-R
ActiveJAE Electronics
CONN RCPT MALE 3P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JL04V-2E10SL-3PE-B-R |
|---|---|
| Applications | Medical, Industrial, Test Equipment & Measurement, Telecommunications |
| Cable Opening [diameter] | 0.622 in |
| Cable Opening [diameter] | 15.8 mm |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 13 A |
| Features | Ground |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Silicon Rubber |
| Mounting Feature | Flange |
| Number of Positions [custom] | 2 |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 10SL-3 |
JL04V-2E Series
| Part | Color | Current Rating (Amps) | Shell Material | Orientation | Applications | Mounting Feature | Insert Material | Cable Opening [custom] | Cable Opening [custom] | Shell Finish | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Ingress Protection | Features | Contact Material | Number of Positions | Number of Positions [custom] | Shell Size - Insert | Connector Type | Cable Opening [diameter] | Cable Opening [diameter] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Shell Size - Insert [Max] | Shell Size - Insert [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Black | 23 A 46 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | 1.417 in | 36 mm | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | 8 9 | PE | 24-11 | Male Pins Receptacle | |||||||||
JAE Electronics | Black | 13 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | 10SL-3 | Male Pins Receptacle | 0.622 in | 15.8 mm | 2 | 3 | 1 | ||||||||
JAE Electronics | Black | 23 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | 4 | 18-10 | Male Pins Receptacle | ||||||||||||
JAE Electronics | Black | 5 A 13 A 23 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | 17 18 | 22-J1 | Male Pins Receptacle | 1.26 in | 32 mm | ||||||||||
JAE Electronics | Black | 23 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | Male Pins Receptacle | 1.165 in | 29.6 mm | 1 | 6 | 15 | 20 | ||||||||
JAE Electronics | Black | 80 A | Aluminum Alloy | N | Industrial Medical Telecommunications Test Equipment & Measurement | Flange | Silicon Rubber | 1.884 in | 47.85 mm | Zinc | Silver | -55 °C | 125 °C | Metal | IP67 - Dust Tight Waterproof | Ground | Copper Alloy | 4 | 32-17 | Male Pins Receptacle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.60 | |
| 10 | $ 12.94 | |||
| 25 | $ 12.44 | |||
| 50 | $ 11.94 | |||
| 100 | $ 11.28 | |||
| 250 | $ 10.29 | |||
| 500 | $ 9.62 | |||
| 1000 | $ 8.83 | |||
Description
General part information
JL04V-2E Series

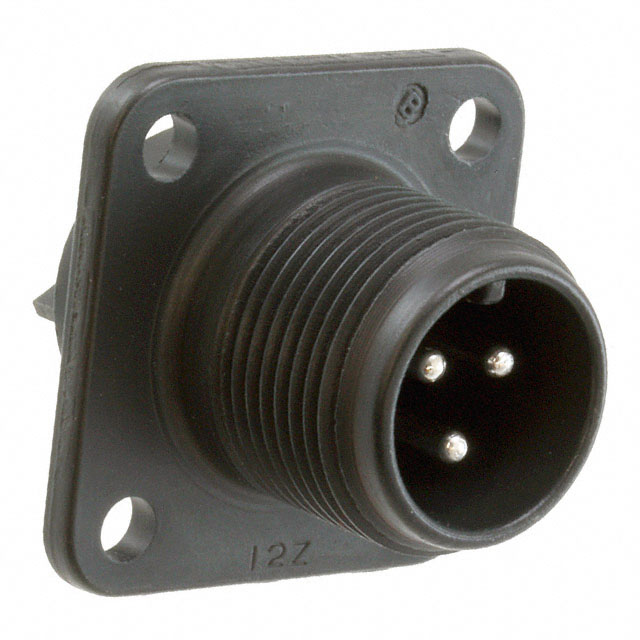

3 (2 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
