TST04AS00

Active

ITT Cannon, LLC

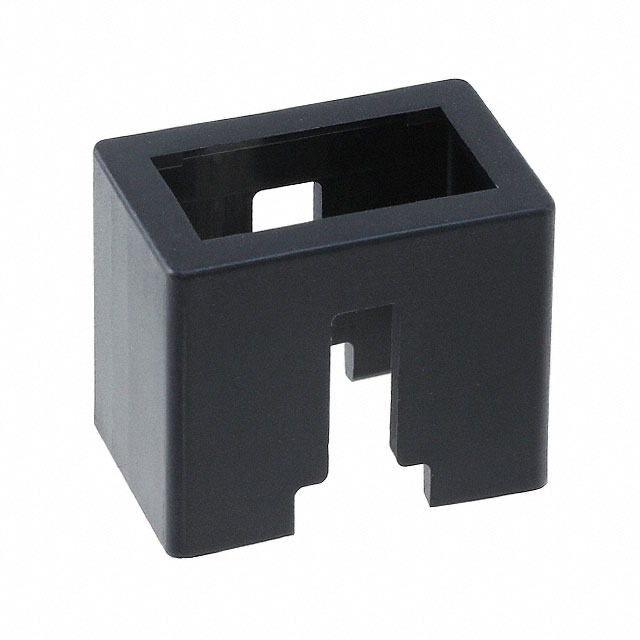

CONN SHROUD FOR 4POS RCPT W/PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TST04AS00

Active

ITT Cannon, LLC

CONN SHROUD FOR 4POS RCPT W/PIN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TST04AS00

Accessory Type	Shroud
For Use With/Related Products	Trident Rectangular Receptacles
Number of Positions	4

TST04 Series

Part	Termination	Insulation Color	Style	Features	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Current Rating (Amps)	Shrouding	Contact Type	Number of Positions Loaded	Connector Type	Fastening Type	Voltage Rating	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Insulation Material	Contact Length - Post	Contact Length - Post	For Use With/Related Products	Accessory Type	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications
ITT Cannon, LLC TST04RD01T	Solder	Black	Board to Cable/Wire	Mounting Flange	UL94 V-0	23.15 mm	0.911 in	1	10 A	Shrouded - 4 Wall	Male Pin	All	Receptacle	Latch Holder	250 VDC	Circular	-40 °C	105 ░C	4	5.08 mm	0.2 in	Through Hole	Nylon Polyamide (PA)	4.7 mm	0.185 in
ITT Cannon, LLC TST04AS00																			4							Trident Rectangular Receptacles	Shroud
ITT Cannon, LLC TST04RD01Y	Solder	Black	Board to Cable/Wire	Mounting Flange	UL94 V-0	23.15 mm	0.911 in	1	10 A	Shrouded - 4 Wall	Male Pin	All	Receptacle	Latch Holder	240 V	Circular	-40 °C	105 ░C	4	5.08 mm	0.2 in	Through Hole	Nylon Polyamide (PA)	4.7 mm	0.185 in			Gold	16 Áin	0.41 Ám
ITT Cannon, LLC TST04RB01T	Solder	Black	Board to Cable/Wire	Mounting Flange	UL94 V-0	13.5 mm	0.531 in	1	13 A	Unshrouded	Male Pin	All	Receptacle	Latch Holder	250 VDC	Circular	-40 °C	105 ░C	4	5.08 mm	0.2 in	Through Hole	Nylon Polyamide (PA)	5.7 mm	0.224 "						Automotive Industrial
ITT Cannon, LLC TST04RE01T	Solder	Black	Board to Cable/Wire	Mounting Flange	UL94 V-0	9.8 mm	0.386 in	1	10 A	Shrouded - 4 Wall	Male Pin	All	Receptacle	Latch Holder	250 VDC	Circular	-40 °C	105 ░C	4	5.08 mm	0.2 in	Through Hole Right Angle	Nylon Polyamide (PA)	4 mm	0.157 in
ITT Cannon, LLC TST04RB02T	Solder	Black	Board to Board Cable	Mounting Flange	UL94 V-0	13.5 mm	0.531 in	1			Female Socket	All	Receptacle	Latch Holder		Circular	-40 °C	105 ░C	4	5.08 mm	0.2 in	Through Hole	Nylon Polyamide (PA)	5.7 mm	0.224 "						Automotive General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	380	$ 1.52

Description

General part information

TST04 Series

Connector Shroud For Trident Rectangular Receptacles
