0357180900

Obsolete

Molex

CONN QC RCPT 16-20AWG 0.187

Search across all available documentation for this part.

Obsolete

Molex

CONN QC RCPT 16-20AWG 0.187

Technical Specifications

Parameters and characteristics for this part

Specification	0357180900

Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.138 in
Insulation Diameter [Max] [diameter]	3.51 mm
Insulation Diameter [Min] [diameter]	0.102 in
Insulation Diameter [Min] [diameter]	2.59 mm
Length - Overall	15 mm
Length - Overall [x]	0.591 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.248 in
Tab Length	6.3 mm
Tab Thickness	0.02 "
Tab Thickness	0.51 mm
Tab Width	4.75 mm
Tab Width	0.187 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	16 AWG

Part	Contact Finish	Gender	Length - Overall	Length - Overall [x]	Tab Thickness	Tab Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width	Tab Width	Terminal Type	Contact Material	Mounting Type	Termination	Insulation	Tab Length	Tab Length	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Tab Length
Molex 0357181010	Tin	Female	15 mm	0.591 in	0.032 in	0.81 mm	16 AWG	20 AWG	4.75 mm	0.187 in	Standard	Brass	Free Hanging (In-Line)	Crimp	Non-Insulated	0.248 in	6.3 mm
Molex 0357180900		Female	15 mm	0.591 in	0.02 "	0.51 mm	16 AWG	20 AWG	4.75 mm	0.187 in	Standard	Brass	Free Hanging (In-Line)	Crimp	Non-Insulated	0.248 in	6.3 mm	0.102 in	0.138 in	3.51 mm	2.59 mm
Molex 0357180810	Tin	Female	15 mm	0.591 in	0.039 in	0.99 mm	16 AWG	20 AWG	4.75 mm	0.187 in	Standard	Brass	Free Hanging (In-Line)	Crimp	Non-Insulated	0.248 in	6.3 mm	0.102 in	0.138 in	3.51 mm	2.59 mm
Molex 0357181610	Tin	Female		0.622 in	0.02 "	0.51 mm	22 AWG	24 AWG	4.75 mm	0.187 in	Standard	Brass	Free Hanging (In-Line)	Crimp	Non-Insulated	5.7 mm						3.61 mm	0.142 in	15.8 mm	0.224 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

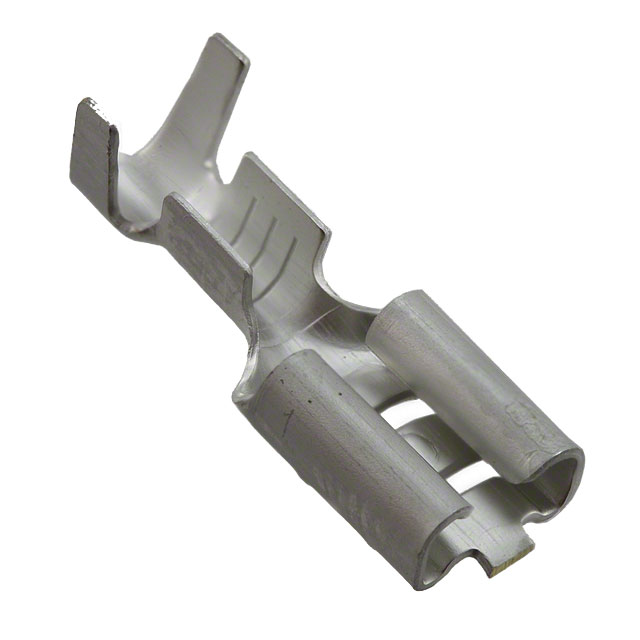

0.187" (4.75mm) Quick Connect Female 16-20 AWG Crimp Connector Non-Insulated
