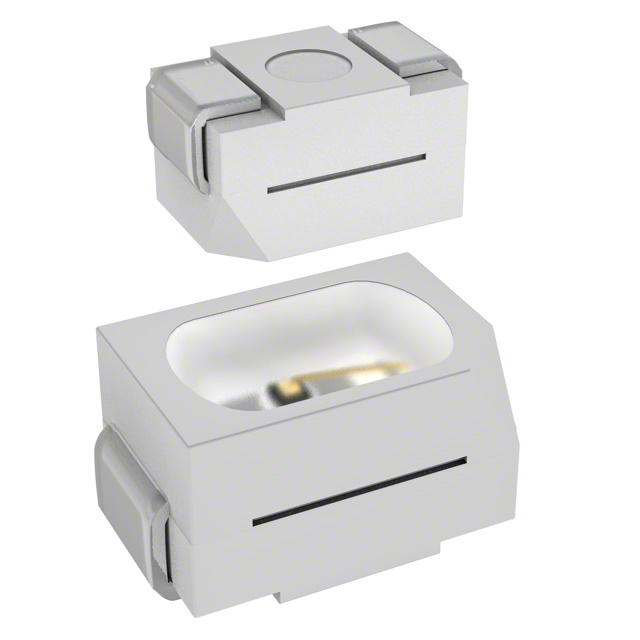

AA2214QBS/D

Active

Kingbright

LED BLUE CLEAR SMD

Search across all available documentation for this part.

Active

Kingbright

LED BLUE CLEAR SMD

Technical Specifications

Parameters and characteristics for this part

Part	Viewing Angle	Color	Height (Max) [Max] [z]	Package / Case	Millicandela Rating	Lens Transparency	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Configuration	Lens Color	Current - Test	Lens Style	Mounting Type
Kingbright AA2214SYSK	120 °	Yellow	1.4 mm	2-SMD J-Lead	250 mcd	Clear	590 nm	2 V	SMD	590 nm	1.65 mm	1.15 mm	Standard	Colorless	20 mA	Oval with Flat Top	Surface Mount
Kingbright AA2214SES/J4	120 °		1.4 mm	2-SMD J-Lead	700 mcd	Clear	611 nm	2.2 V	SMD	605 nm	1.65 mm	1.15 mm	Standard	Colorless	20 mA	Oval with Flat Top	Surface Mount
Kingbright AA2214CGSK	120 °	Green	1.4 mm	2-SMD J-Lead	70 mcd	Clear		2.1 V	SMD	570 nm	1.65 mm	1.15 mm	Independent	Colorless	20 mA	Oval with Flat Top	Surface Mount
Kingbright AA2214QBS/D	120 °	Blue	1.4 mm	2-SMD J-Lead	150 mcd	Clear	460 nm	3.3 V	SMD	465 nm	1.65 mm	1.15 mm	Standard	Colorless	20 mA	Oval with Flat Top	Surface Mount
Kingbright AA2214SESK	120 °		1.4 mm	2-SMD J-Lead	180 mcd	Clear	610 nm	2.1 V	SMD	601 nm	1.65 mm	1.15 mm	Standard	Colorless	20 mA	Oval with Flat Top	Surface Mount
Kingbright AA2214SURSK	120 °	Red	1.4 mm	2-SMD J-Lead	100 mcd	Clear	645 nm	1.95 V	SMD	630 nm	1.65 mm	1.15 mm	Standard	Colorless	20 mA	Oval with Flat Top	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Blue 465nm LED Indication - Discrete 3.3V 2-SMD, J-Lead
