09330006207

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN E SERIES, SOCKET, 12 AWG, CRIMP, 16 A, COPPER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN E SERIES, SOCKET, 12 AWG, CRIMP, 16 A, COPPER

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin or Socket	Type	Contact Termination	Wire Gauge
HARTING Technology Group 09330006121	Silver	3 µm	118.1 µin	Pin	Machined	Crimp	20 AWG
HARTING Technology Group 09330006390
HARTING Technology Group 09330006111	Silver	3 µm	118.1 µin	Pin	Machined	Crimp	13.5 AWG
HARTING Technology Group 09330006123	Gold	2 µm	78.7 µin	Pin	Machined	Crimp	13.5 AWG
HARTING Technology Group 09330006195	Silver	3 µm	118.1 µin	Pin		Wire Wrap
HARTING Technology Group 09330006207	Silver	3 µm	118.1 µin	Socket	Machined	Crimp	12 AWG
HARTING Technology Group 09330006106	Silver	3 µm	118.1 µin	Pin	Machined	Crimp	12 AWG
HARTING Technology Group 09330006414	Gold Nickel Alloy			Socket	Machined	Crimp	18 AWG
HARTING Technology Group 09330006105	Silver	3 µm	118.1 µin	Pin	Machined	Crimp	18 AWG
HARTING Technology Group 09330006110	Silver	3 µm	118.1 µin	Pin	Machined	Crimp	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

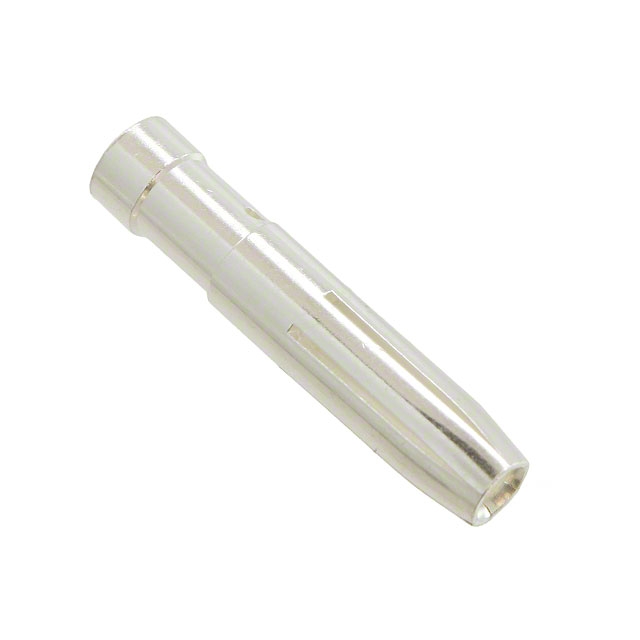

The 09330006207 is a female Han E Crimp Contact made of copper alloy with silver plated finish. It accepts 12AWG wire.
