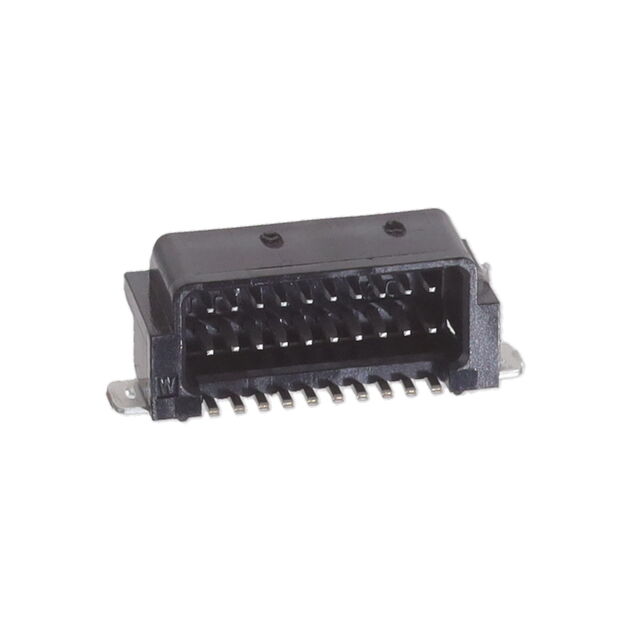

IL-WX-20PB-HF-HD-S-B-E1000E
ActiveJAE Electronics
CONN HEADER SMD R/A 20POS 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
IL-WX-20PB-HF-HD-S-B-E1000E
ActiveJAE Electronics
CONN HEADER SMD R/A 20POS 0.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-WX-20PB-HF-HD-S-B-E1000E |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 1.8 mm |
| Contact Length - Mating | 0.071 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 500 mA |
| Fastening Type | Push-Pull |
| Features | Solder Retention, Board Guide |
| Insulation Color | Black |
| Insulation Height | 0.185 in |
| Insulation Height | 4.7 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Row Spacing - Mating [x] | 1.5 mm |
| Row Spacing - Mating [x] | 0.059 in |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
IL-WX-20 Series
| Part | Pitch - Mating | Pitch - Mating | Insulation Color | Number of Positions Loaded | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish - Post | Shrouding | Insulation Material | Number of Positions | Contact Type | Insulation Height | Insulation Height | Fastening Type | Mounting Type | Termination | Contact Shape | Current Rating (Amps) | Number of Rows | Features | Contact Length - Mating | Contact Length - Mating | Contact Finish - Mating | Material Flammability Rating | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Brass | 85 °C | -40 °C | Header | 1.5 mm | 0.059 in | Tin | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) | 20 | Male Pin | 3.66 mm | 0.144 in | Push-Pull | Surface Mount | Solder | Square | 500 mA | 2 | Board Guide Solder Retention | 1.8 mm | 0.071 in | |||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Copper Alloy | 85 °C | -40 °C | Header | 1.5 mm | 0.059 in | Tin | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Male Pin | 4.7 mm | 0.185 in | Push-Pull | Surface Mount Right Angle | Solder | Square | 500 mA | 2 | Board Guide Solder Retention | 1.8 mm | 0.071 in | |||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Copper Alloy | 85 °C | -40 °C | Header | 1.5 mm | 0.059 in | Tin | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Male Pin | 4.7 mm | 0.185 in | Push-Pull | Surface Mount Right Angle | Solder | Square | 500 mA | 2 | Board Guide Solder Retention | 1.8 mm | 0.071 in | |||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Copper Alloy | 85 °C | -40 °C | Receptacle | 1.5 mm | 0.059 in | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Forked | 3.25 mm | 0.128 in | Push-Pull | Surface Mount | Solder | Square | 0.5 A | 2 | Solder Retention | Gold | UL94 V-0 | General Purpose | ||||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Copper Alloy | 85 °C | -40 °C | Receptacle | 1.5 mm | 0.059 in | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Forked | 3.25 mm | 0.128 in | Push-Pull | Surface Mount | Solder | Square | 0.5 A | 2 | Solder Retention | UL94 V-0 | General Purpose | |||||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Copper Alloy | 85 °C | -40 °C | Receptacle | 1.5 mm | 0.059 in | Polyphenylene Sulfide (PPS) Glass Filled | 20 | Forked | 3.25 mm | 0.128 in | Push-Pull | Surface Mount | Solder | Square | 0.5 A | 2 | Solder Retention | UL94 V-0 | General Purpose | |||||
JAE Electronics | 0.031 in | 0.8 mm | Black | All | Brass | 85 °C | -40 °C | Header | 1.5 mm | 0.059 in | Tin | Shrouded - 4 Wall | Polyphenylene Sulfide (PPS) | 20 | Male Pin | 3.66 mm | 0.144 in | Push-Pull | Surface Mount | Solder | Square | 500 mA | 2 | Solder Retention | 1.8 mm | 0.071 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.04 | |
| 10 | $ 1.77 | |||
| 100 | $ 1.59 | |||
| 500 | $ 1.32 | |||
| Digi-Reel® | 1 | $ 2.04 | ||
| 10 | $ 1.77 | |||
| 100 | $ 1.59 | |||
| 500 | $ 1.32 | |||
| Tape & Reel (TR) | 1000 | $ 1.13 | ||
| 2000 | $ 1.09 | |||
| 3000 | $ 1.06 | |||
| 5000 | $ 1.00 | |||
| 10000 | $ 0.98 | |||
Description
General part information
IL-WX-20 Series
Connector Header Surface Mount, Right Angle 20 position 0.031" (0.80mm)
