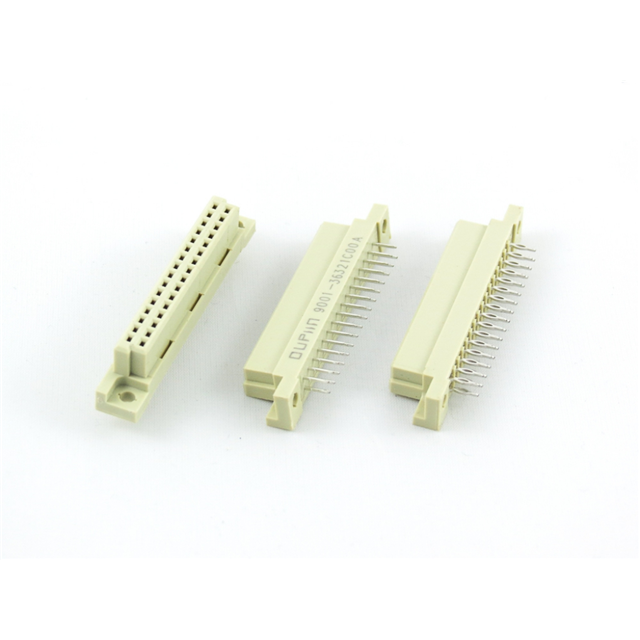

9001-36322C00L1A

Active

Oupiin

DIN41612, FEMALE, HALF B TYPE, 3

Deep-Dive with AI

Search across all available documentation for this part.

9001-36322C00L1A

Active

Oupiin

DIN41612, FEMALE, HALF B TYPE, 3

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9001-36322C00L1A

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Current Rating (Amps)	2 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	B/2
Style	1/2 B
Termination	Solder

9001 Series

Part	Mounting Type	Connector Type	Material - Insulation	Material Flammability Rating	Number of Rows	Pitch [x]	Pitch [x]	Style	Contact Finish	Contact Finish Thickness	Current Rating (Amps)	Termination	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Style
Oupiin 9001-1296W2C00PA	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	3	2.54 mm	0.1 in	C	Gold	Flash	2 A	Press-Fit	96	-55 °C	125 °C	All
Oupiin 9001-12962C00A	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	3	2.54 mm	0.1 in	C	Gold	Flash	2 A	Solder	96	-55 °C	125 °C	All
Oupiin 9001-12961C00A	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	3	2.54 mm	0.1 in	C	Gold	Flash	2 A	Solder	96	-55 °C	125 °C	All
Oupiin 9001-1264W2C00PA	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2	2.54 mm	0.1 in	C	Gold	Flash	2 A	Press-Fit	64	-55 °C	125 °C	All
Oupiin 9001-13641C00A	Through Hole	Header Male Pins	Polyester Thermoplastic Glass Filled	UL94 V-0	2	2.54 mm	0.1 in	R	Gold	Flash	2 A	Solder	64	-55 °C	125 °C	All
Oupiin 9001-17481C00A	Through Hole	Header Male Pins	Polybutylene Terephthalate (PBT)	UL94 V-0	3	2.54 mm	0.1 in	R/2 (1/2 R)	Gold	Flash	2 A	Solder	48	-55 °C	125 °C	All
Oupiin 9001-14961C00A	Through Hole Right Angle	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	3	2.54 mm	0.1 in	R	Gold	Flash	2 A	Solder	96	-55 °C	125 °C	All
Oupiin 9001-36322C00L1A	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2	2.54 mm	0.1 in	B/2	Gold	Flash	2 A	Solder		-55 °C	125 °C	All	1/2 B
Oupiin 9001-13961C00A	Through Hole	Header Male Pins	Polyester Thermoplastic Glass Filled	UL94 V-0	3	2.54 mm	0.1 in	R	Gold	Flash	2 A	Solder	96	-55 °C	125 °C	All
Oupiin 9001-12642C00A	Through Hole	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	UL94 V-0	2	2.54 mm	0.1 in	C	Gold	Flash	2 A	Solder	64	-55 °C	125 °C	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.46

Description

General part information

9001 Series

32 Position Din Connector Receptacle, Female Sockets Gold Through Hole

Documents

Technical documentation and resources

No documents available
