T21AC-M0607-103A2020-TA
ActiveAmphenol Piher Sensing Systems

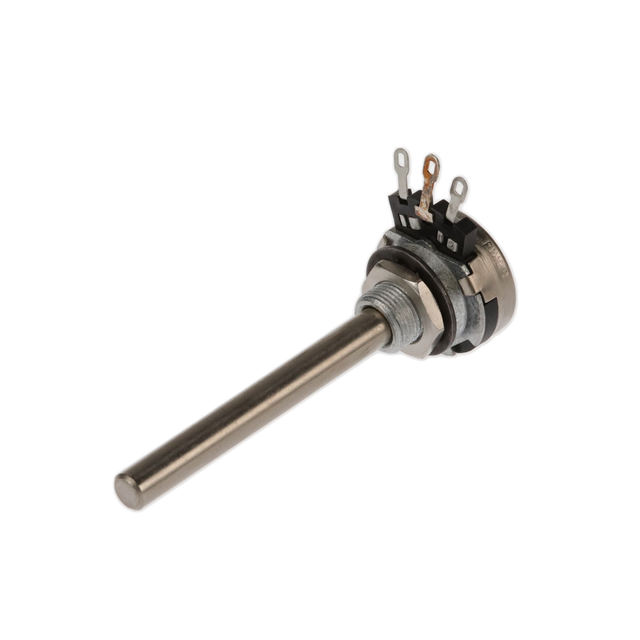

POT 10K OHM 1/4W CARBON LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
T21AC-M0607-103A2020-TA
ActiveAmphenol Piher Sensing Systems
POT 10K OHM 1/4W CARBON LINEAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T21AC-M0607-103A2020-TA |
|---|---|
| Actuator Diameter [diameter] | 0.236 in |
| Actuator Diameter [diameter] | 6 mm |
| Actuator Length | 60 mm |
| Actuator Length [z] | 2.362 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | M10 x 0.75 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 0.25 W |
| Power (Watts) | 250 mW |
| Resistance (Ohms) | 10k |
| Resistive Material | Carbon |
| Rotation | 310 ° |
| Size - Body [diameter] | 0.846 in |
| Size - Body [diameter] | 21.5 mm |
| Taper | Linear |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | Solder Lug |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.39 | |
| 10 | $ 5.13 | |||
| 25 | $ 4.70 | |||
| 50 | $ 4.39 | |||
| 100 | $ 4.11 | |||
| 250 | $ 3.86 | |||
Description
General part information
T21 Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Carbon 0.25W, 1/4W Solder Lug
