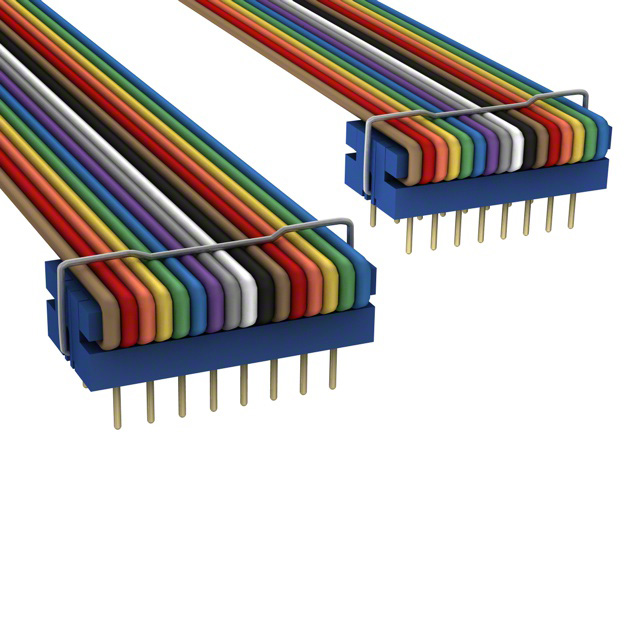

C0RRG-1636M

Active

CW Industries

DIP CABLE - CDR16G/AE16M/CDR16G

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDR16G/AE16M/CDR16G

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Number of Positions	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Number of Rows	Color	Contact Finish	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Features	Usage	Shielding	Connector Type	Length	Length	Length	Number of Positions
CW Industries C0RRG-1636M	IDC	16	3 ft	914.4 mm	0.1 in	2.54 mm	2	Multiple Ribbon	Gold	0.05 "	1.27 mm	10 Áin	0.25 Ám	Strain Relief	Board In Socket (0.3")	Unshielded	DIP to DIP Reversed
CW Industries C0RRG-1606G	IDC	16			0.1 in	2.54 mm	2		Gold	0.05 "	1.27 mm	10 Áin	0.25 Ám	Strain Relief	Board In Socket (0.3")	Unshielded	DIP to DIP Reversed	152.4 mm	6 "	0.5 '
CW Industries C0RRG-1618M	IDC	16	1.5 ft	457.2 mm	0.1 in	2.54 mm	2	Multiple Ribbon	Gold	0.05 "	1.27 mm	10 Áin	0.25 Ám	Strain Relief	Board In Socket (0.3")	Unshielded	DIP to DIP Reversed
CW Industries C0RRG-1418G	IDC		1.5 ft	457.2 mm	0.1 in	2.54 mm	2		Gold	0.05 "	1.27 mm	10 Áin	0.25 Ám	Strain Relief	Board In Socket (0.3")	Unshielded	DIP to DIP Reversed				14
CW Industries C0RRG-1418M	IDC		1.5 ft	457.2 mm	0.1 in	2.54 mm	2	Multiple Ribbon	Gold	0.05 "	1.27 mm	10 Áin	0.25 Ám	Strain Relief	Board In Socket (0.3")	Unshielded	DIP to DIP Reversed				14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Cable Assembly Rectangular DIP to DIP, Reversed 3.00' (914.40mm)
