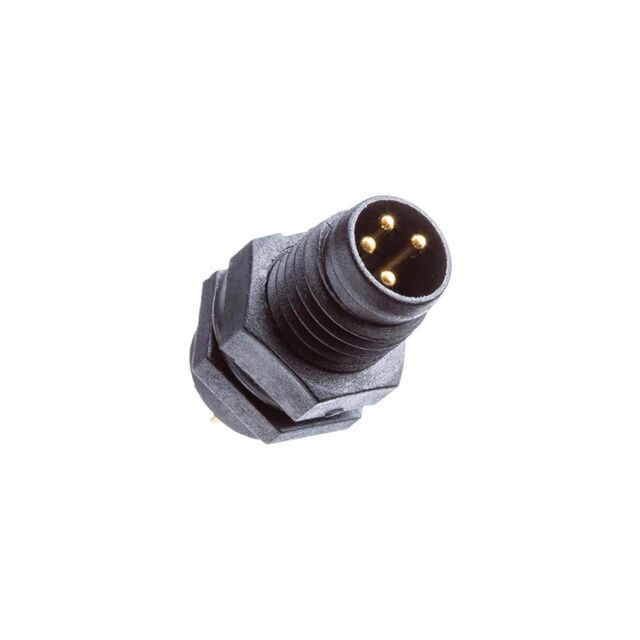

8P-03PMMP-SF7001

Active

Amphenol LTW

M8 CONN

Search across all available documentation for this part.

Active

Amphenol LTW

M8 CONN

Technical Specifications

Parameters and characteristics for this part

Specification	8P-03PMMP-SF7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	3 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M8-3
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Voltage Rating	Connector Type	Ingress Protection	Mounting Type	Shell Size - Insert	Shielding	Material Flammability Rating	Shell Material	Mounting Feature	Contact Finish - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation	Color	Current Rating (Amps)	Primary Material	Contact Material
Amphenol LTW 8P-03PMMP-SF7001	60 VDC	Male Pins Receptacle	IP67 - Dust Tight Waterproof	Panel Mount Through Hole	M8-3	Unshielded	UL94 V-0	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	Gold	Solder	-40 °C	105 ░C	Polyamide (PA) Nylon Glass Filled	Keyed	Black	3 A	Plastic	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder
