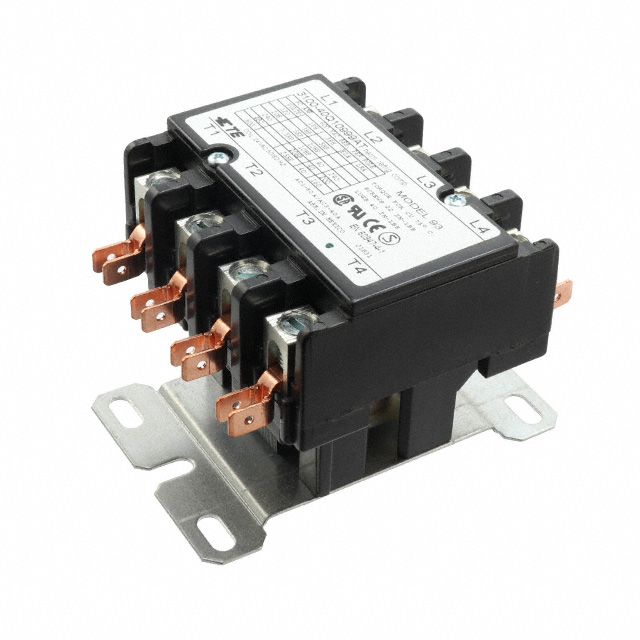

3100-40Q10999AT
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR 4PST 40A 24V
Deep-Dive with AI
Search across all available documentation for this part.
3100-40Q10999AT
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY CONTACTOR 4PST 40A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3100-40Q10999AT |
|---|---|
| Coil Power | 9 VA |
| Coil Resistance | 5 Ohms |
| Coil Voltage | 24 VAC |
| Contact Form | 4PST-NO (DM) (4 Form X) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 40 A |
| Features | Insulation - Class B |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 19.2 VAC |
| Must Release Voltage | 6 VAC |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Switching Voltage | 600 VAC |
| Termination Style | Screw Terminal, Quick Connect |
| Termination Style | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 219.42 | |
Description
General part information
3100-40 Series
RELAY CONTACTOR 4PST 40A 24V
Documents
Technical documentation and resources
No documents available
