US168ELD-AAA-000-SP

Melexis Technologies NV

IC MOTOR DRIVER 1.8V-6.5V 6UTQFN

Search across all available documentation for this part.

Melexis Technologies NV

IC MOTOR DRIVER 1.8V-6.5V 6UTQFN

Technical Specifications

Parameters and characteristics for this part

Specification	US168ELD-AAA-000-SP

Applications	Fan Motor Driver
Current - Output	350 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	On/Off
Motor Type - AC, DC	Brushless DC (BLDC)
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)

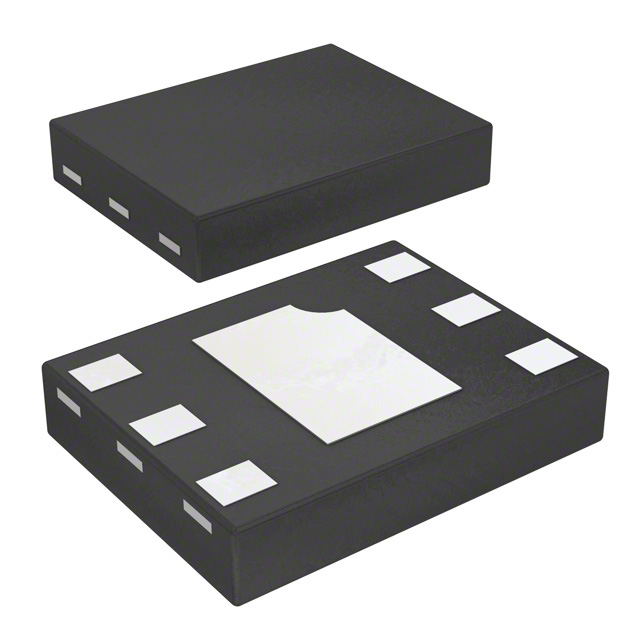

Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	6-UTQFN (1.5x2)
Voltage - Load [Max]	6.5 V
Voltage - Load [Min]	1.8 V
Voltage - Supply [Max]	6.5 V
Voltage - Supply [Min]	1.8 V

Part	Applications	Supplier Device Package	Interface	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Motor Type - AC, DC	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Function	Output Configuration
Melexis Technologies NV US168KLD-AAA-000-RE	Fan Motor Driver	6-UTDFN (2x1.5)	On/Off	1.8 V	6.5 V	6-XFDFN Exposed Pad	Brushless DC (BLDC)	85 °C	-40 °C	350 mA	1.8 V	6.5 V	Surface Mount	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)
Melexis Technologies NV US168ELD-AAA-000-SP	Fan Motor Driver	6-UTQFN (1.5x2)	On/Off	1.8 V	6.5 V	6-XFDFN Exposed Pad	Brushless DC (BLDC)	85 °C	-40 °C	350 mA	1.8 V	6.5 V	Surface Mount	Driver - Fully Integrated Control and Power Stage	Half Bridge (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.79

General part information

Motor Driver On/Off 6-UTQFN (1.5x2)
