XLT2416-04AC
ActiveMarlow Industries, Inc.

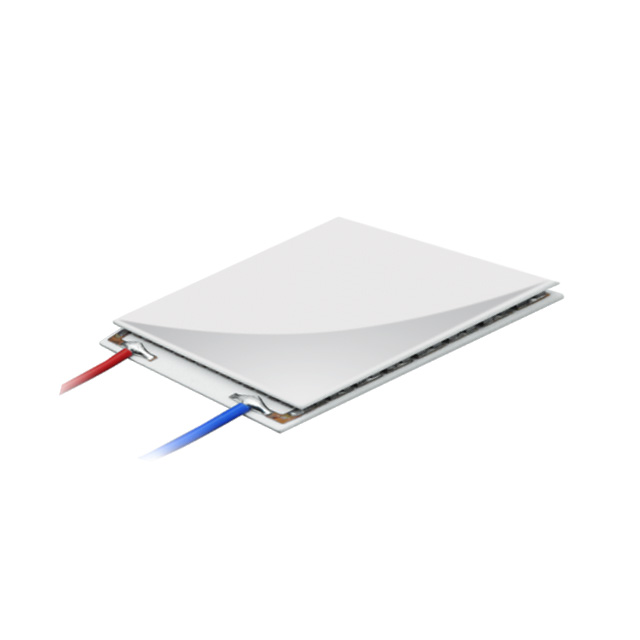

TEM THERMOCYCLER 25.4X25.4X3.8MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLT2416-04AC
ActiveMarlow Industries, Inc.
TEM THERMOCYCLER 25.4X25.4X3.8MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLT2416-04AC |
|---|---|
| Current - Max [Max] | 14.7 A |
| Delta Tmax @ Th | 27 °C, 56 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 125 °C |
| Qmax @ Th | 33.9 W |
| Resistance | 200 mOhms |
| Size / Dimension [x] | 28.7 mm |
| Size / Dimension [y] | 25.4 mm |
| Voltage - Max [Max] | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.81 | |
| 20 | $ 46.41 | |||
| 100 | $ 42.59 | |||
Description
General part information
XLT2416 Series
Peltier Module 33.9W @ 27°C 14.7 A 125°C
Documents
Technical documentation and resources
