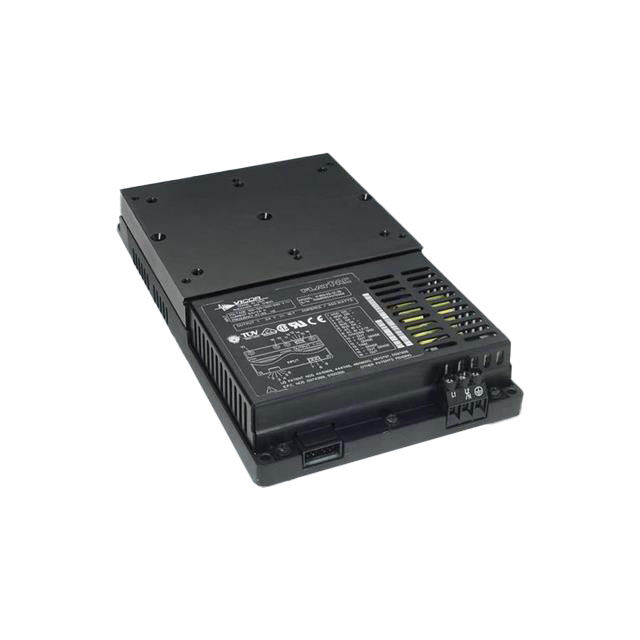

VI-RUR22-EWXX
ActiveVicor Corporation
AC/DC CONVERTER 7.5V 2X15V 250W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VI-RUR22-EWXX
ActiveVicor Corporation
AC/DC CONVERTER 7.5V 2X15V 250W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VI-RUR22-EWXX |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 13.3 A |
| Current - Output 2 | 5 A |
| Current - Output 3 | 5 A |
| Efficiency | 88 % |
| Features | Remote Sense, Adjustable Output |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 250 W |
| Size / Dimension [x] | 234.8 mm |
| Size / Dimension [x] | 9.25 in |
| Size / Dimension [y] | 185.4 mm |
| Size / Dimension [y] | 7.3 in |
| Size / Dimension [z] | 1.37 in |
| Size / Dimension [z] | 34.8 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 7.5 V |
| Voltage - Output 2 | 15 V |
| Voltage - Output 3 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2080.98 | |
Description
General part information
VI-RUR22 Series
Enclosed AC DC Converters 3 Output 7.5V 15V 15V 90 ~ 132 VAC, 180 ~ 264 VAC Input
