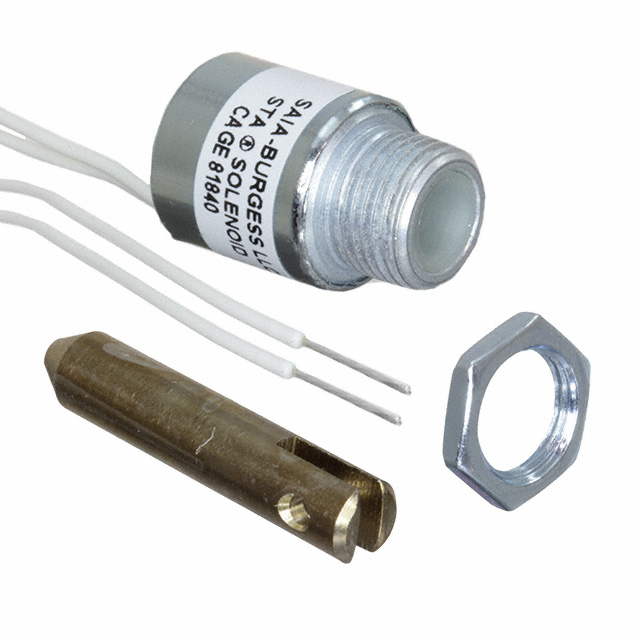

195200-237
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
TUBULAR SOLENOID STA PULL 1/2 X
Deep-Dive with AI
Search across all available documentation for this part.
195200-237
ActiveLedex Dormeyer Saia, a Division of Johnson Electric
TUBULAR SOLENOID STA PULL 1/2 X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 195200-237 |
|---|---|
| Bushing Thread | 3/8-32 UNEF |
| DC Resistance (DCR) | 45.7 Ohm |
| Diameter - Shaft [diameter] | 4.7 mm |
| Diameter - Shaft [diameter] | 0.185 in |
| Duty Cycle | Continuous |
| Power (Watts) | 12 W |
| Shaft Detail | Clevis |
| Size / Dimension [diameter] | 0.5 in |
| Size / Dimension [diameter] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [x] | 0.5 in |
| Stroke Length | 0.1 in |
| Stroke Length | 2.54 mm |
| Technology | Electromechanical |
| Termination Style | Wire Leads |
| Type | Closed Frame (Pull), Tubular |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.95 | |
| 10 | $ 39.14 | |||
| 25 | $ 37.37 | |||
| 50 | $ 36.09 | |||
| 100 | $ 34.85 | |||
| 250 | $ 33.27 | |||
Description
General part information
195200 Series
Continuous Duty Solenoid Closed Frame (Pull), Tubular Type 0.100" (2.54mm) Stroke 24VDC Panel Mount
