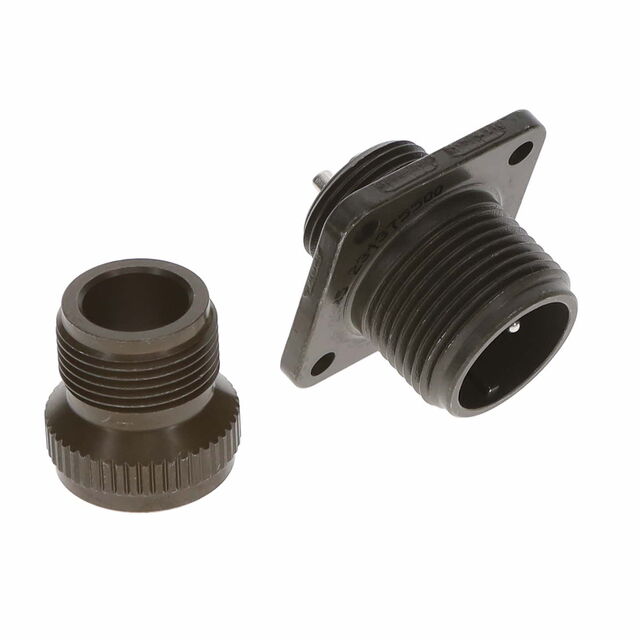

MS3100A12S-3P - MS3100A12S-3P

MS3100A12S-3P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
MS3100A12S-3P - MS3100A12S-3P

MS3100A12S-3P

Active
Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationMS3100A12S-3P
ApplicationsMilitary, Marine
ColorOlive Drab
Connector TypeReceptacle, Male Pins
Contact Finish - MatingSilver
Contact MaterialCopper Alloy
Current Rating (Amps)13 A
Ingress ProtectionEnvironment Resistant
Insert MaterialNeoprene
Mounting FeatureFlange
Number of Positions2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
OrientationN
Primary MaterialMetal
QualificationMIL-5015
Shell FinishOlive Drab Chromate over Cadmium
Shell MaterialAluminum Alloy
Shell Size - Insert12S-3
ShieldingUnshielded
Voltage Rating700 VDC, 500 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 21.88
10$ 19.16
25$ 18.33
50$ 17.74
100$ 17.15
250$ 16.20
500$ 15.73

Description

General part information

MS3100A12 Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup
