Technical Specifications
Parameters and characteristics for this part
| Specification | SLE24S4803B01 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, cULus, CB, TUV, GS, RCM, CCC, cURus, PSE |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 24 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.46 " |
| Size / Dimension [x] | 88 mm |
| Size / Dimension [y] | 1.18 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [z] | 2.24 in |
| Size / Dimension [z] | 57 mm |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information

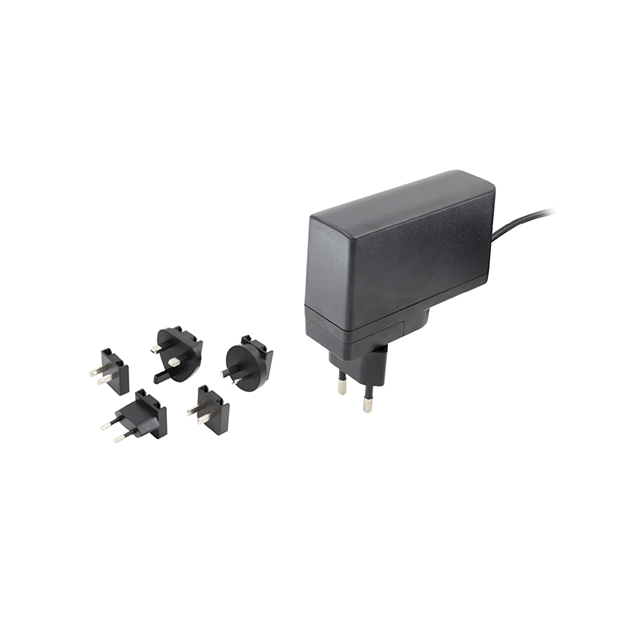

SLE24S4803 Series
Wall Mount AC Adapters 24W 48Vout 2.3mm Contacts Required
