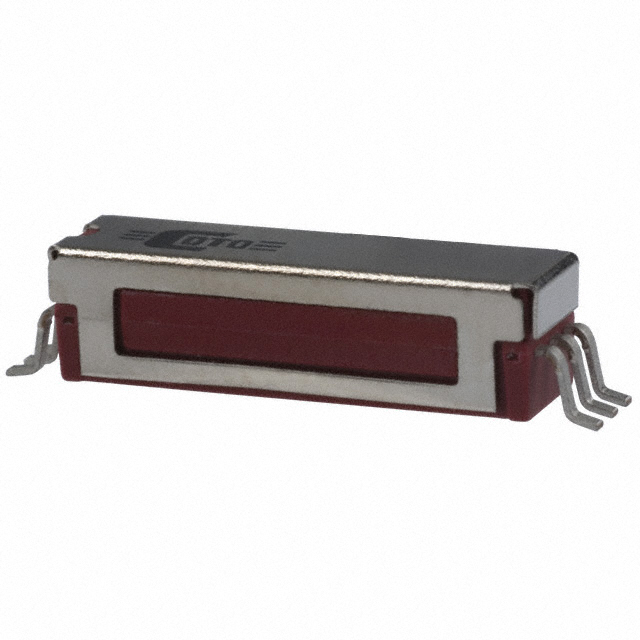

9270-05-00TR

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Mounting Type	Switching Voltage	Coil Voltage	Coil Type	Features	Contact Form	Must Release Voltage	Operate Time	Contact Rating (Current)	Release Time	Coil Current	Coil Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Must Operate Voltage
Coto Technology 9270-12-20	J Lead	Surface Mount	200 VDC 200 VAC	12 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	1 VDC	0.4 ms	0.5 A	0.1 ms	30 mA	400 Ohms	-20 C	125 °C	6.7 VDC
Coto Technology 9270-12-00	Gull Wing	Surface Mount	200 VDC 200 VAC	12 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	1 VDC	0.4 ms	0.5 A	0.1 ms	30 mA	400 Ohms	-20 C	125 °C	6.7 VDC
Coto Technology 9270-05-00	Gull Wing	Surface Mount	200 VDC 200 VAC	5 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	0.4 VDC	0.4 ms	0.5 A	0.1 ms	50 mA	100 Ohms	-20 C	125 °C	2.5 VDC
Coto Technology 9270-05-20TR	J Lead	Surface Mount	200 VDC 200 VAC	5 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	0.4 VDC	0.4 ms	0.5 A	0.1 ms	50 mA	100 Ohms	-20 C	125 °C	2.5 VDC
Coto Technology 9270-05-00TR	Gull Wing	Surface Mount	200 VDC 200 VAC	5 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	0.4 VDC	0.4 ms	0.5 A	0.1 ms	50 mA	100 Ohms	-20 C	125 °C	2.5 VDC
Coto Technology 9270-05-20	J Lead	Surface Mount	200 VDC 200 VAC	5 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	0.4 VDC	0.4 ms	0.5 A	0.1 ms	50 mA	100 Ohms	-20 C	125 °C	2.5 VDC
Coto Technology 9270-24-00TR	Gull Wing	Surface Mount	200 VDC 200 VAC	24 VDC	Non Latching	Magnetic Shield	SPST-NO (1 Form A)	2 VDC	0.4 ms	0.5 A	0.1 ms			-20 C	125 °C	13.4 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY RF SPST-NO 500MA 5V

Technical documentation and resources
