PSPT-250-175-WT
ObsoleteBRADY
WIRE MARK SLV 16~10AWG 1=100PCS
Deep-Dive with AI
Search across all available documentation for this part.
PSPT-250-175-WT
ObsoleteBRADY
WIRE MARK SLV 16~10AWG 1=100PCS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSPT-250-175-WT |
|---|---|
| Color | White |
| Label Size | 6.4 mm, 44.5 mm |
| Label Size | 0.25 ", 1.75 in |
| Label Size [Max] | 0.22 in |
| Label Size [Max] | 5.5 mm |
| Label Size [Min] | 0.09 " |
| Label Size [Min] | 2.4 mm |
| Label Type | Heat Shrinkable |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 135 °C |
| Operating Temperature [Min] | -55 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PSPT-250 Series

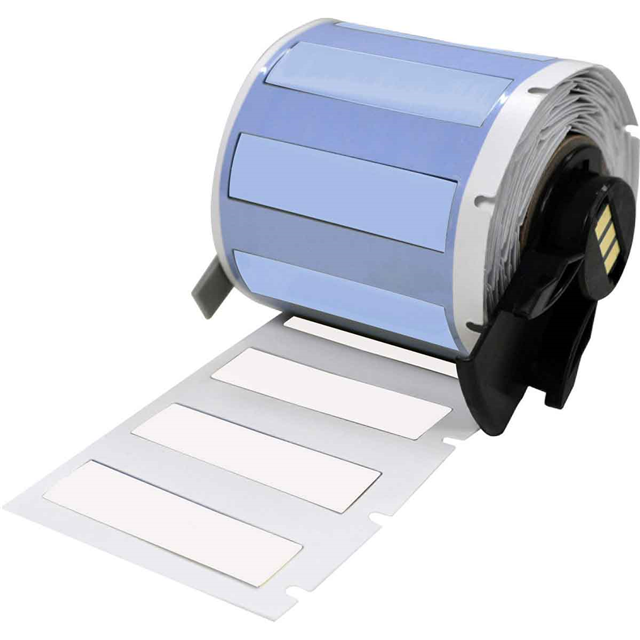

White Heat Shrinkable Label 1.75" W x 0.25" Dia (44.5mm x 6.4mm); Cable O.D. 0.09" ~ 0.22" (2.4mm ~ 5.5mm)
