UFL-2LPVHF6-04N2TV-A-700

Active

Hirose Electric USA, Inc.

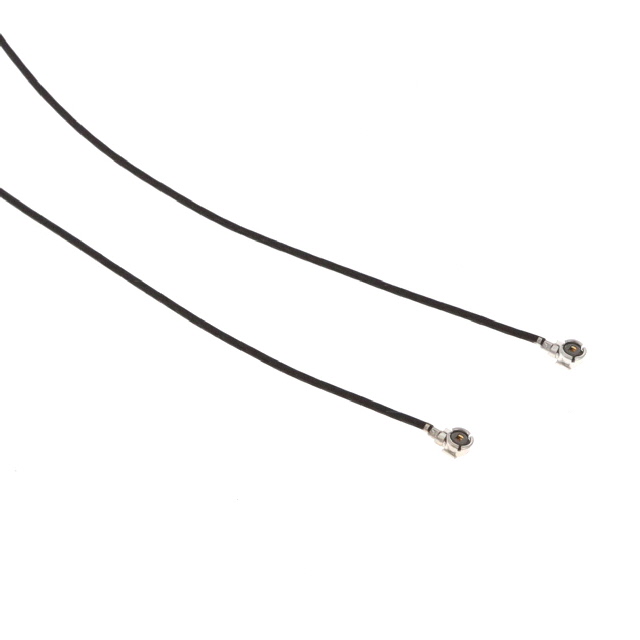

CBL ASSY U.FL PLUG-PLUG 27.56"

Deep-Dive with AI

Search across all available documentation for this part.

UFL-2LPVHF6-04N2TV-A-700

Active

Hirose Electric USA, Inc.

CBL ASSY U.FL PLUG-PLUG 27.56"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UFL-2LPVHF6-04N2TV-A-700

1st Connector	U.FL (UMCC) Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	Coaxial Cable
Cable Type [diameter]	0.81 mm
Color	Black
Frequency - Max [Max]	6000 MHz
Length [x]	700 mm
Length [x]	27.56 in
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Style	U.FL (UMCC) to U.FL (UMCC)

UFL-2LPV Series

Part	Length [x]	Length [x]	2nd Connector Mounting Type	2nd Connector	Cable Type	Cable Type [diameter]	Color	2nd Contact Gender	1st Connector	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	1st Connector Mounting Type	Cable Impedance	1st Contact Gender	Style	Length	Length	Overall Impedance
Hirose Electric USA, Inc. UFL-2LPVHF6-04N2TV-A-250	9.843 "	250 mm	Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	Black	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-80			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)	0.08 m	3.15 "	50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-70			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)	70 mm	2.756 "	50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-175			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)	175 mm	6.89 "	50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N2TV-A-50	1.969 in	50 mm	Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	Black	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-135			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)	135 mm	5.315 "	50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N2TV-A-700	27.56 in	700 mm	Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	Black	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-90			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)	90 mm	3.543 in	50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-35	1.378 in	35 mm	Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)			50 Ohms
Hirose Electric USA, Inc. UFL-2LPVHF6-04N1TV-A-40			Free Hanging (In-Line)	U.FL (UMCC) Plug Right Angle	Coaxial Cable	0.81 mm	White	Female	U.FL (UMCC) Plug Right Angle	90 °C	-40 °C	6000 MHz	Free Hanging (In-Line)	50 Ohms	Female	U.FL (UMCC) to U.FL (UMCC)			50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 4.44

Description

General part information

UFL-2LPV Series

Cable Assembly Coaxial U.FL (UMCC) to U.FL (UMCC) 0.81mm OD Coaxial Cable 27.56" (700.00mm)
