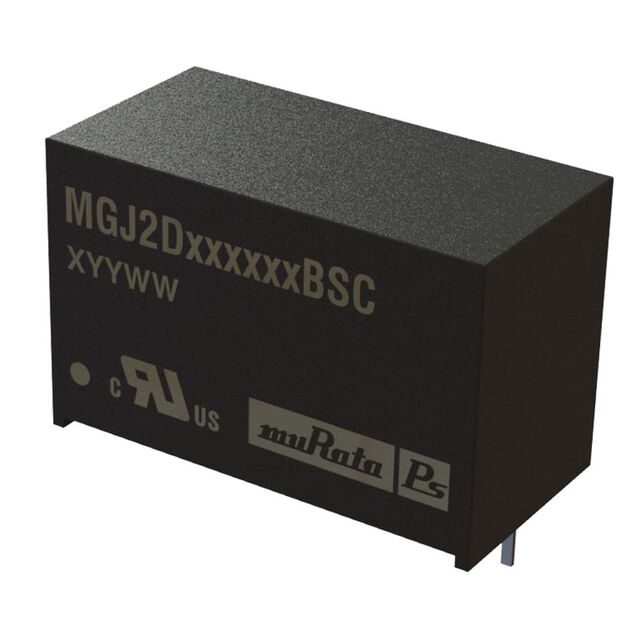

MGJ2D121505BSC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE & MEDICAL, SIP, 2 W, 2 OUTPUT, 15 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE & MEDICAL, SIP, 2 W, 2 OUTPUT, 15 V

Technical Specifications

Parameters and characteristics for this part

Isolated DC/DC Converters - Through Hole DC/DC 2W TH 12-15/5V 5.4KV SIP

Part	Voltage - Output 2	Efficiency	Standard Number	Applications	Voltage - Output 1	Voltage - Isolation	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Mounting Type	Current - Output (Max)	Package / Case	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Current - Output (Max) [Max]
Murata Power Solutions Inc. MGJ2D151509MPC-R7	-9 V	77 %	60601-1 62368-1	ITE (Commercial) Medical	15 V	5.7 kV	Isolated Module	19.9 mm	0.59 in	0.79 in	4.4 mm	0.17 in	15 mm	2 W	Surface Mount	80 mA	8-SMD Module	16.5 V	13.5 V	-40 °C	95 °C	2
Murata Power Solutions Inc. MGJ2D121505BSC	-5 V	80 %	60601-1 62368-1	ITE (Commercial) Medical	15 V	5.4 kV	Isolated Module							1.4 W	Through Hole		7-SIP Module 5 Leads	13.2 V	10.8 V	-40 °C	105 ░C	2	40 mA 80 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated DC/DC Converters - Through Hole DC/DC 2W TH 12-15/5V 5.4KV SIP
