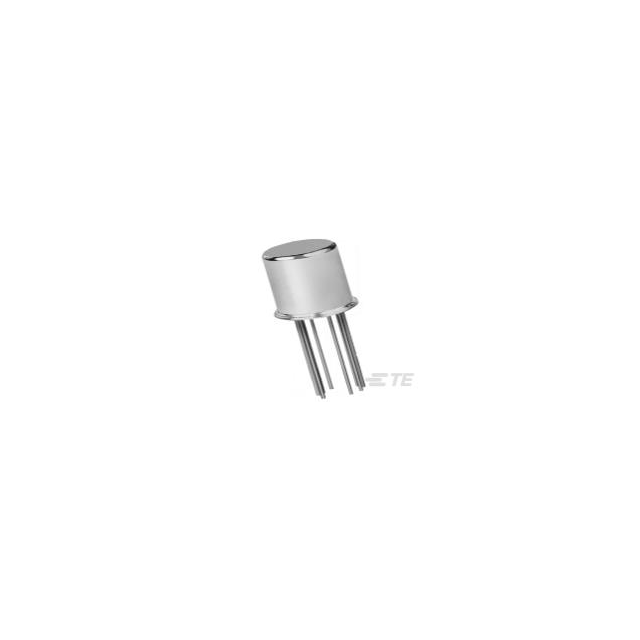

3-1617162-3
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GENERAL PURPOSE SPDT 1A 5V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1617162-3
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY GENERAL PURPOSE SPDT 1A 5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-1617162-3 |
|---|---|
| Coil Current | 40 mA |
| Coil Resistance | 125 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Contact Rating (Current) | 1 A |
| Features | Diode |
| Mounting Type | Through Hole |
| Must Operate Voltage | 2.6 VDC |
| Must Release Voltage | 0.22 VDC |
| Operate Time | 3.5 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Relay Type | General Purpose |
| Release Time | 7.5 ms |
| Seal Rating | Sealed - Hermetically |
| Switching Voltage | 28 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 206.48 | |
| 2 | $ 198.84 | |||
Description
General part information
1617162 Series
General Purpose Relay SPDT (1 Form C) Through Hole
