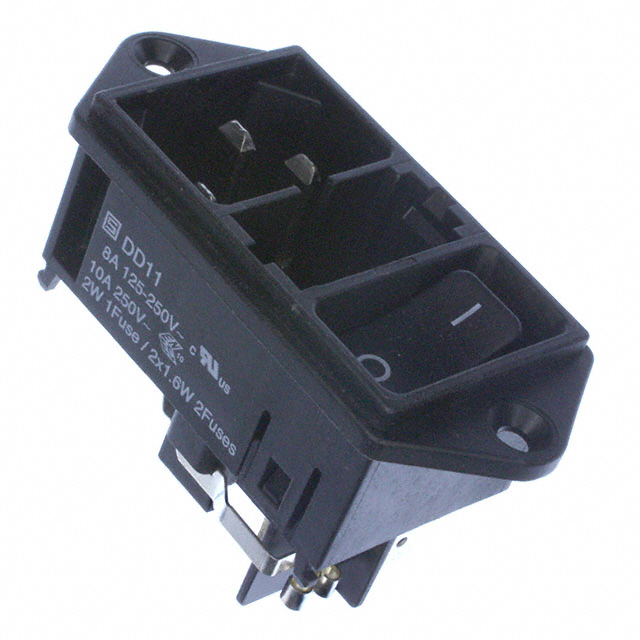

DD11.0111.1110

Active

SCHURTER Inc.

DD11, MOUNTING: SCREW-ON MOUNTING, ROCKER SWITCH: NON-ILLUMINATED 2-POLE, QUICK CONNECT TERMINALS 4.8 X 0.8 MM, APPLIANCE INLET:

Search across all available documentation for this part.

Active

SCHURTER Inc.

DD11, MOUNTING: SCREW-ON MOUNTING, ROCKER SWITCH: NON-ILLUMINATED 2-POLE, QUICK CONNECT TERMINALS 4.8 X 0.8 MM, APPLIANCE INLET:

Technical Specifications

Parameters and characteristics for this part

Specification	DD11.0111.1110

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Connector Style	Termination	Termination	Ingress Protection	Voltage Rating - Appliance Inlet	Switch Features	Mounting Type	Connector Type	Filter Type	Accomodates a Fuse	Material Flammability Rating	Approval Agency	Current Rating - Appliance Inlet	Fuse Holder, Drawer	Features
SCHURTER Inc. DD11.0111.1111	IEC 320-C14	0.189 " 4.8 mm	Quick Connect	IP40	250 VAC	Switch On-Off	Flange Panel Mount	Receptacle Male Blades - Module	Unfiltered - Commercial		UL94 V-0	cULus ENEC	10 A	Drawer Sold Separate	Cover
SCHURTER Inc. DD11.0111.1110	IEC 320-C14	0.189 " 4.8 mm	Quick Connect	IP40	250 VAC	Switch On-Off	Flange Panel Mount	Receptacle Male Blades - Module	Unfiltered - Commercial		UL94 V-0	cULus ENEC	10 A	Drawer Sold Separate

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
