Q-0305C0003108i

Active

Amphenol Custom Cable

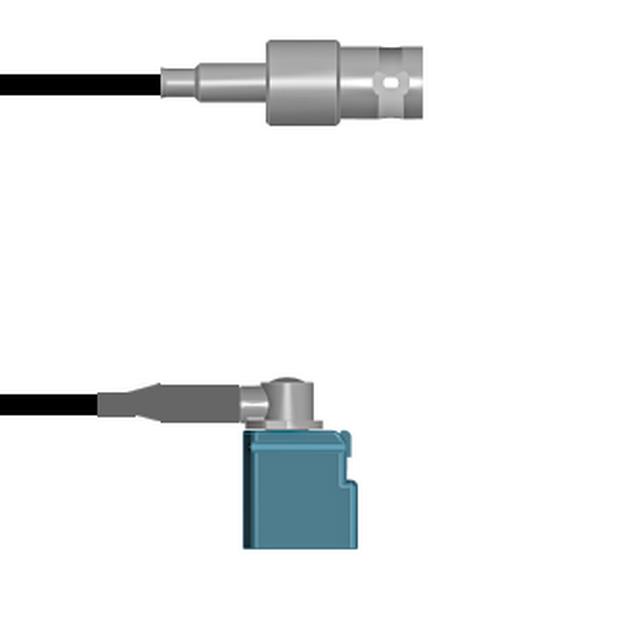

CBL ASSY BNC-FAKRA JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0305C0003108i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0305C0003108i

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0305C0 Series

Part	1st Connector Mounting Type	Features	1st Contact Gender	2nd Connector	2nd Contact Gender	Cable Type	1st Connector	Overall Impedance	Frequency - Max [Max]	2nd Connector Mounting Type	Style	Length [x]	Length [x]	Color	Length	Length	Length
Amphenol Custom Cable Q-0305C0005018i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-316	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra	457.2 mm	457.2 mm	Copper
Amphenol Custom Cable Q-0305C00032.5M	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-0305C0003003i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black		3 in	76.2 mm
Amphenol Custom Cable Q-0305C0003009i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black		9 "	228.6 mm
Amphenol Custom Cable Q-0305C0003003M	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-0305C0003001M	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-0305C0005003i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-316	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Copper		3 in	76.2 mm
Amphenol Custom Cable Q-0305C0003108i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-174	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Black	9 ft	108 in	2.7 m
Amphenol Custom Cable Q-0305C0005060i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-316	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Copper	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-0305C0005009i	Free Hanging (In-Line)	Shielded	Female	Fakra Jack Right Angle	Female	RG-316	BNC Jack	50 Ohms	3 GHz	Free Hanging (In-Line)	BNC to Fakra			Copper		9 "	228.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 66.49
		25	$ 65.19
		50	$ 63.88
		100	$ 62.58
		250	$ 61.27

Description

General part information

Q-0305C0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
