345-010-559-158
ActiveEDAC Inc.

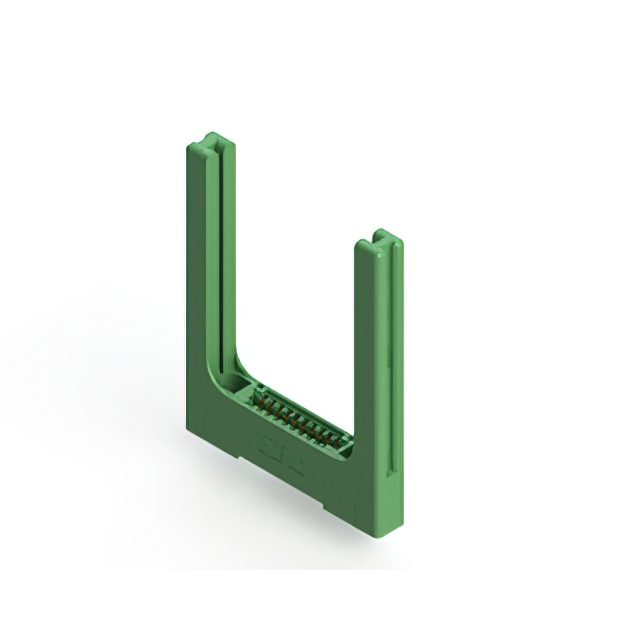

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Search across all available documentation for this part.
345-010-559-158
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 10 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-010-559-158 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-010 Series
...
| Part | Contact Material | Number of Positions | Features | Mounting Type | Material - Insulation | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Termination | Termination Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Gender | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Contact Finish | Pitch [x] | Pitch [x] | Number of Rows | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 10 | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Solder | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||
EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Solder | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | ||||
EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | |||||
EDAC Inc. | Copper Alloy | 10 | Through Hole | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Solder | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 | ||||||
EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
EDAC Inc. | Copper Alloy | 10 | Card Extender | Board Edge Straddle Mount | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Solder | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||
EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole | Polyester Thermoplastic | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 5 | Wire Wrap | 2 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | Gold | 2.54 mm | 0.1 in | 2 | ||||
EDAC Inc. | Copper Alloy | 10 | Card Guides | Through Hole Right Angle | Polyester Thermoplastic | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 | Wire Wrap | 1 | -40 °C | 105 ░C | Green | Cantilever | 10 Áin | 0.25 Ám | Female | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Single Edge | Gold | 2.54 mm | 0.1 in | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-010 Series
10 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
