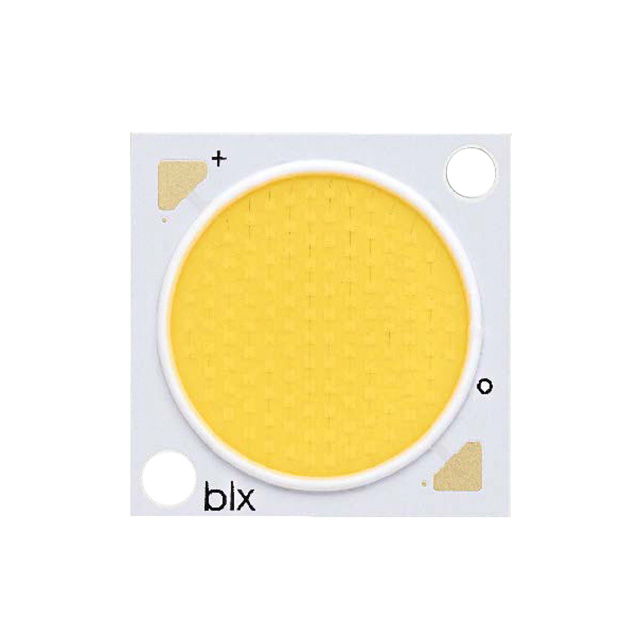

BXRE-17E4000-B-74

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN TUBE

Search across all available documentation for this part.

Active

BRIDGELUX

LED MODULES UNI-COLOR WHITE 2-PIN TUBE

Technical Specifications

Parameters and characteristics for this part

Specification	BXRE-17E4000-B-74

CCT (K)	1750 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	1.8 A
Current - Test	900 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	19.2 mm
Lumens/Watt @ Current - Test	79 lm/W
Luminous Flux @ Current/Temperature	2402 lm
Size / Dimension [x]	24 mm
Size / Dimension [y]	24 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	34 V

Part	CRI (Color Rendering Index)	Configuration	Color	Current - Max [Max]	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Current - Test	CCT (K)	Temperature - Test	Height [z]	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Type
BRIDGELUX BXRE-17E4000-B-74	80	Square	Warm White	1.8 A	120 °	24 mm	24 mm	Flat	900 mA	1750 K	85 °C	1.7 mm	2402 lm	79 lm/W	19.2 mm	34 V	Chip On Board (COB)
BRIDGELUX BXRE-17E6500-D-74	80	Square	Warm White	2.8 A	120 °	28 mm	28 mm	Flat		1750 K	85 °C	1.7 mm		81 lm/W	22.6 mm	33.4 V	Chip On Board (COB)
BRIDGELUX BXRE-17E2000-C-74	80	Square	Warm White	1.26 A	120 °	19 mm	19 mm	Flat	630 mA	1750 K		1.7 mm	1879 lm	86 lm/W	14 mm	34.8 V	Chip On Board (COB)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 7.23

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 7 V18 Array White, Warm Square
