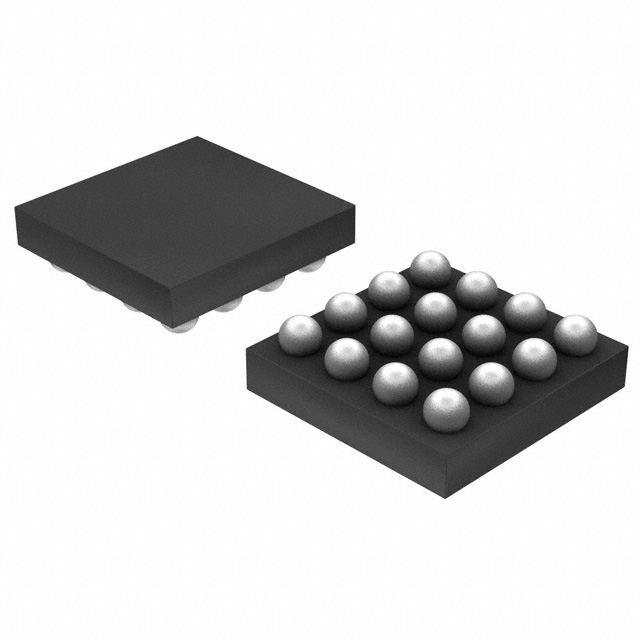

TCK321G,LF
ActiveToshiba Semiconductor and Storage
IC PWR SWITCH N-CHAN 2:1 16WCSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TCK321G,LF |
|---|---|
| Current - Output (Max) [Max] | 2 A |
| Fault Protection | Reverse Current, UVLO, Over Voltage, Over Temperature |
| Features | Slew Rate Controlled, Status Flag |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | CSPBGA, 16-UFBGA |
| Ratio - Input:Output | 2:1 |
| Rds On (Typ) | 98 mOhm |
| Supplier Device Package | 16-WCSPC |
| Supplier Device Package [x] | 1.9 |
| Supplier Device Package [y] | 1.9 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 36 V |
| Voltage - Load [Min] | 2.3 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.14 | |
| 10 | $ 1.37 | |||
| 25 | $ 1.16 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.70 | |||
| 2500 | $ 0.64 | |||
| Digi-Reel® | 1 | $ 2.14 | ||
| 10 | $ 1.37 | |||
| 25 | $ 1.16 | |||
| 100 | $ 0.94 | |||
| 250 | $ 0.82 | |||
| 500 | $ 0.76 | |||
| 1000 | $ 0.70 | |||
| 2500 | $ 0.64 | |||
| Tape & Reel (TR) | 5000 | $ 0.60 | ||
| 10000 | $ 0.57 | |||
| 15000 | $ 0.56 | |||
Description
General part information
TCK321 Series
Power Switch/Driver 2:1 N-Channel 2A 16-WCSPC (1.9x1.9)
