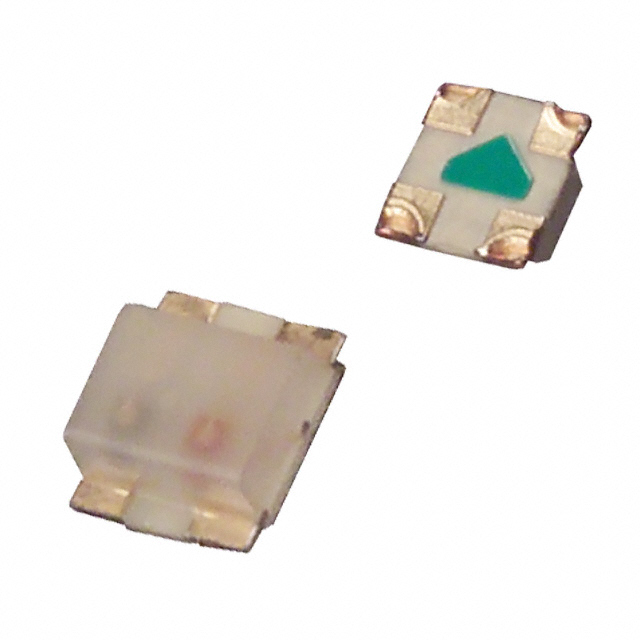

SML522BUNWT86
ActiveRohm Semiconductor
LED, RED, BLUE, SMD, RECTANGLE, RB 5MA ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
SML522BUNWT86
ActiveRohm Semiconductor
LED, RED, BLUE, SMD, RECTANGLE, RB 5MA ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | SML522BUNWT86 |
|---|---|
| Color | Blue, Red |
| Configuration | Independent |
| Current - Test [custom] | 5 mA |
| Current - Test [custom] | 5 mA |
| Height (Max) [Max] [z] | 0.7 mm |
| Lens Color | White |
| Lens Size [x] | 1.3 mm |
| Lens Size [y] | 1.1 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating [custom] | 21 mcd |
| Millicandela Rating [custom] | 22 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 1.5 mm |
| Size / Dimension [y] | 1.3 mm |
| Voltage - Forward (Vf) (Typ) | 1.9 V, 2.9 V |
| Wavelength - Dominant [custom] | 624 nm, 470 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.33 | |
| 10 | $ 0.84 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.47 | |||
| 2000 | $ 0.45 | |||
| Digi-Reel® | 1 | $ 1.33 | ||
| 10 | $ 0.84 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.57 | |||
| 1000 | $ 0.47 | |||
| 2000 | $ 0.45 | |||
| Tape & Reel (TR) | 4000 | $ 0.45 | ||
| 8000 | $ 0.44 | |||
| 12000 | $ 0.43 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.38 | |
| 10 | $ 0.98 | |||
| 25 | $ 0.90 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.73 | |||
| 250 | $ 0.68 | |||
| 500 | $ 0.62 | |||
| 1000 | $ 0.59 | |||
Description
General part information
SML522 Series
Blue, Red 470nm Blue, 624nm Red LED Indication - Discrete 2.9V Blue, 1.9V Red 4-SMD, No Lead
